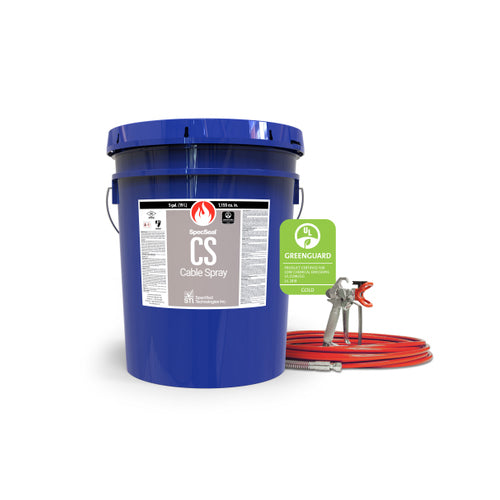

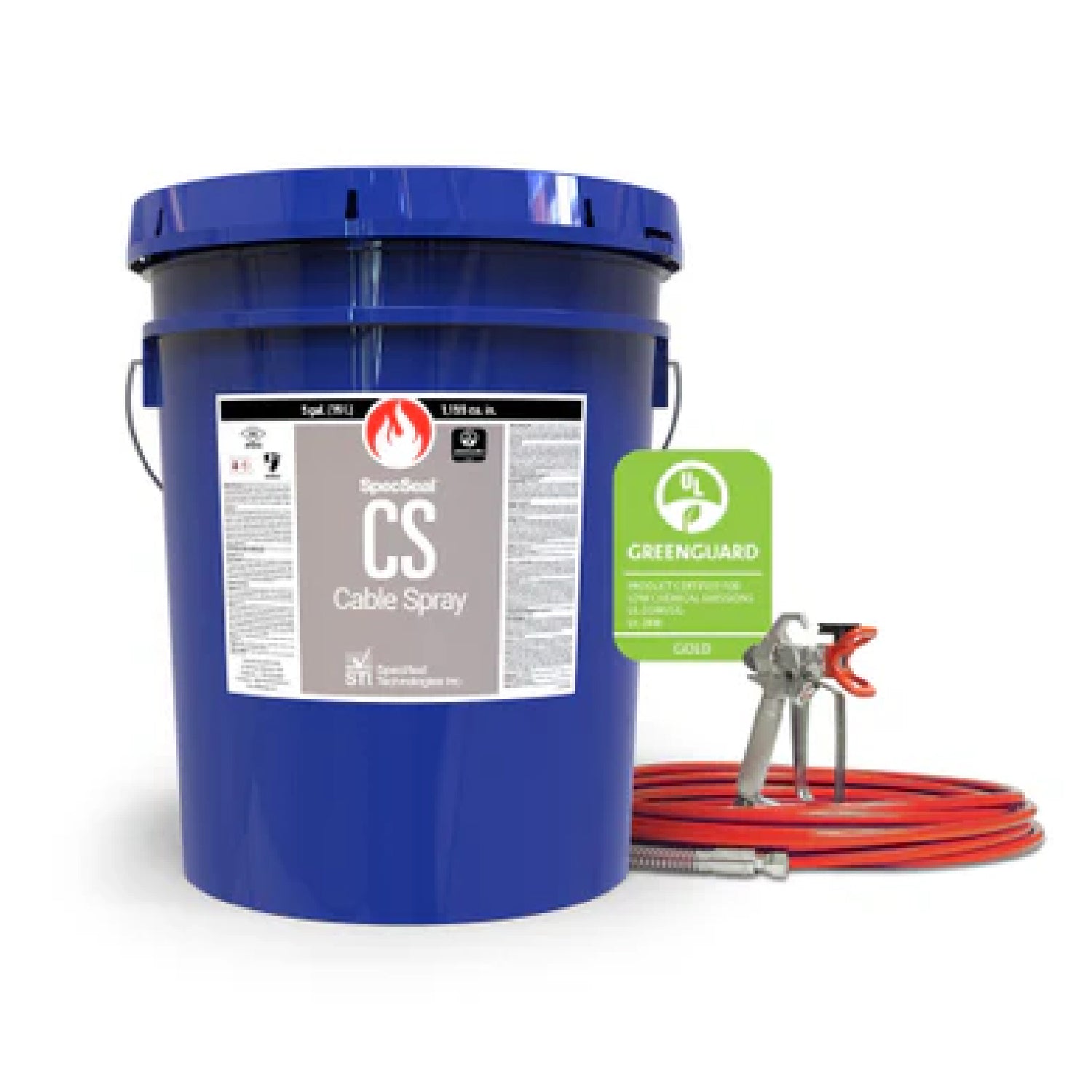

STI SpecSeal Flame Retardant Cable Spray – Fire Protection Coating

Certifications

• UL Green Guard - Gold

Description

The STI® Spec Seal® Flame Retardant Cable Spray is designed to help protect cables from exposure to uncontrolled fire, supporting fire-resistance performance in cable management applications. It can be applied using standard spraying equipment, allowing for straightforward and efficient installation across a range of jobsite conditions.

Property	Value
Color	White
Density/Weight per Gallon	10.7 lb/gal (1.28 kg/L)
Solids Content by Weight	68.9%
Solids Content by Volume	62.5%
Flame Spread	0*
Smoke Development	15*
Coverage	17.1 sq ft/gal @ 3⁄32" Wet Film Thickness (0.42 sq m/L @ 2.4 mm Wet Film Thickness)
Viscosity	105,000 cps
In Service Temperature	Less than 185°F (85°C)
Storage Temperature	40°F (4°C) to 95°F (35°C)
Application Temperature	40°F (4°C) to 95°F (35°C)
Drying Time	Tack Free 2 Hours**
Dry Through	24-48 Hours
VOC Content	26 g/L***
Shelf Life From Date of Manufacture	24 months

*Tested to ASTM E84 (UL723) at 14% surface coverage (modified test for sealants and caulks)

**Dependent on temperature and humidity

***Per SCAQMD Rule 1168 (EPA Method 24)

Features & Benefits

• High solids, better coverage
• Thixotropic for high-build application
• Safe, no solvents, no asbestos, no PCB’s, no inorganic fibers
• Non-halogenated
• Low abrasion for longer pump life and less maintenance
• Meets LEEDTM v3 requirements. Low emitting materials credit. See general LEED letter for additional applicable credits
