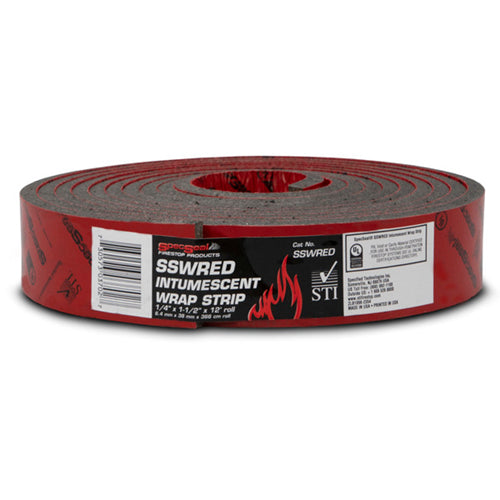

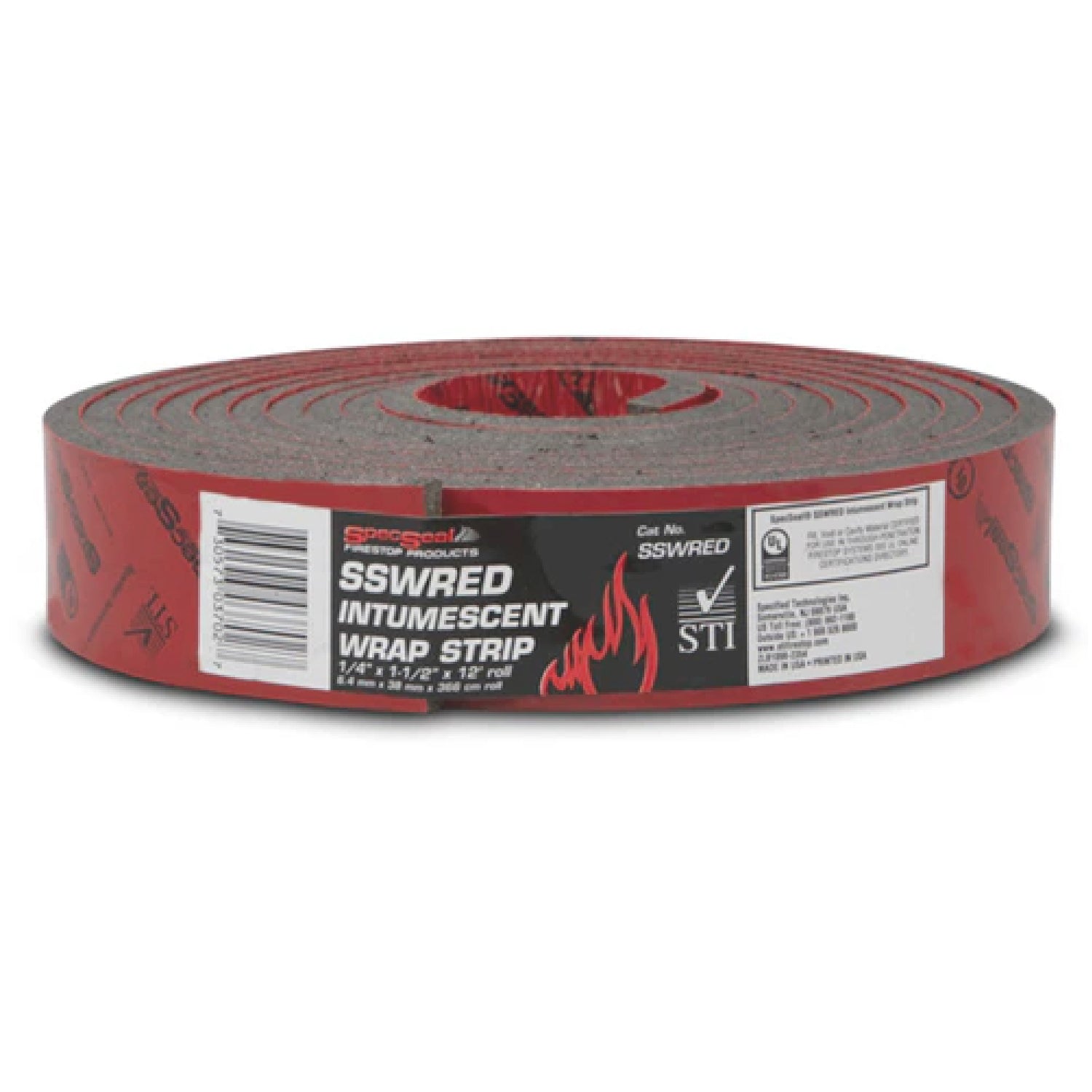

STI Intumescent Wrap Strip – Pipe Firestop Barrier
Regular price
$85.57
Secure checkout
Friendly support
Hassle-free returns
Need Specifications / Data Sheets?
Specified Technology Inc. SSW Wrap Strips are designed to help protect against the spread of smoke and fire through penetrations in floors, walls, and ceilings. These intumescent wrap strips expand up to 24 times their original size when exposed to heat, allowing them to seal cavities and maintain firestop performance.
Available in 12 ft rolls or as pre-sized strips, they support efficient installation while minimizing material waste. When used with restraining steel, SSW Wrap Strips are capable of collapsing non-metallic pipes up to 12 inches in diameter, helping seal openings and maintain the integrity of fire-rated assemblies.
|
Property
|
SSWRED
|
|---|---|
| Color | Red |
| Thickness | 1⁄4" (6.4 mm) |
| Width | 1 1⁄2" (38 mm) |
| Length (min.) | 12' (3.7 m) |
| Weight (min.) | 2.92 lbs (1.33 kg) |
| Expansion System | Two-Stage |
| Expansion Begins | 1st Stage 250°F (121°C), 2nd Stage 350°F (177°C) |
| Volume Expansion | 16x to 24x |
| Mold & Fungus Growth Rating (ASTM G21) | 0 |
| In Service Temperature | Less than 130°F (54°C) |
| Storage Temperature | Less than 130°F (54°C) |
| Shelf Life | No Limit |
| Oven Aging | No Change 140°F (60°C) |
| Humidity Exposure | No Change 60°C (98% R.H.) |
| UL Accelerating Aging | Pass |
