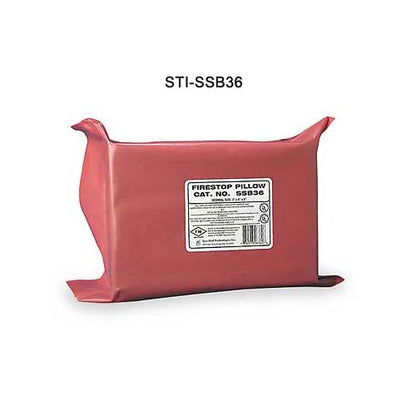

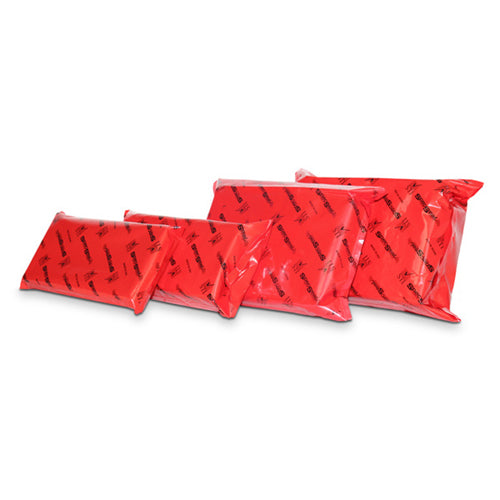

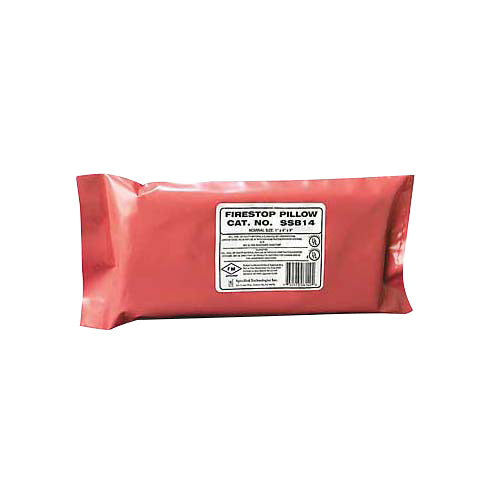

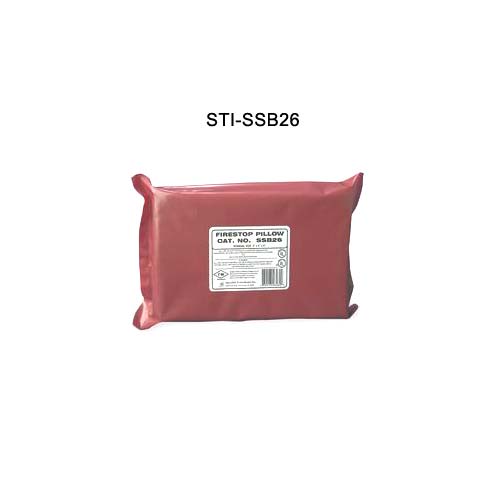

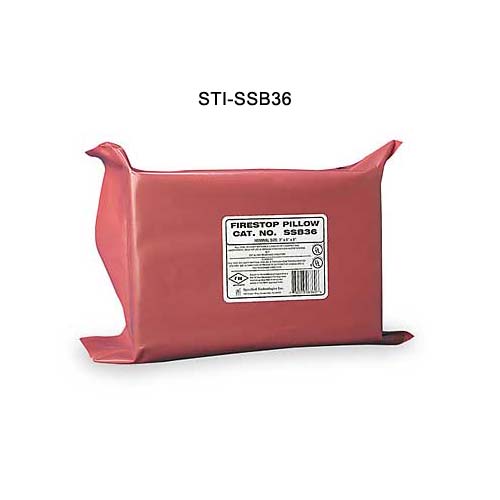

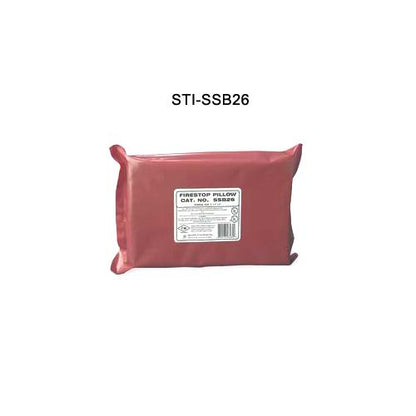

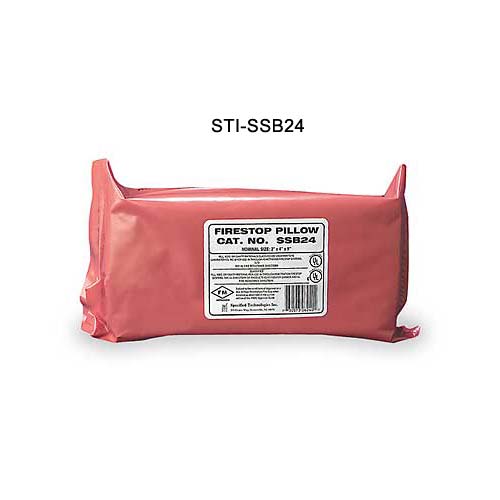

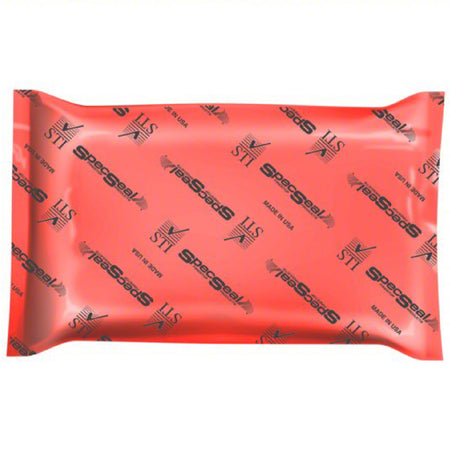

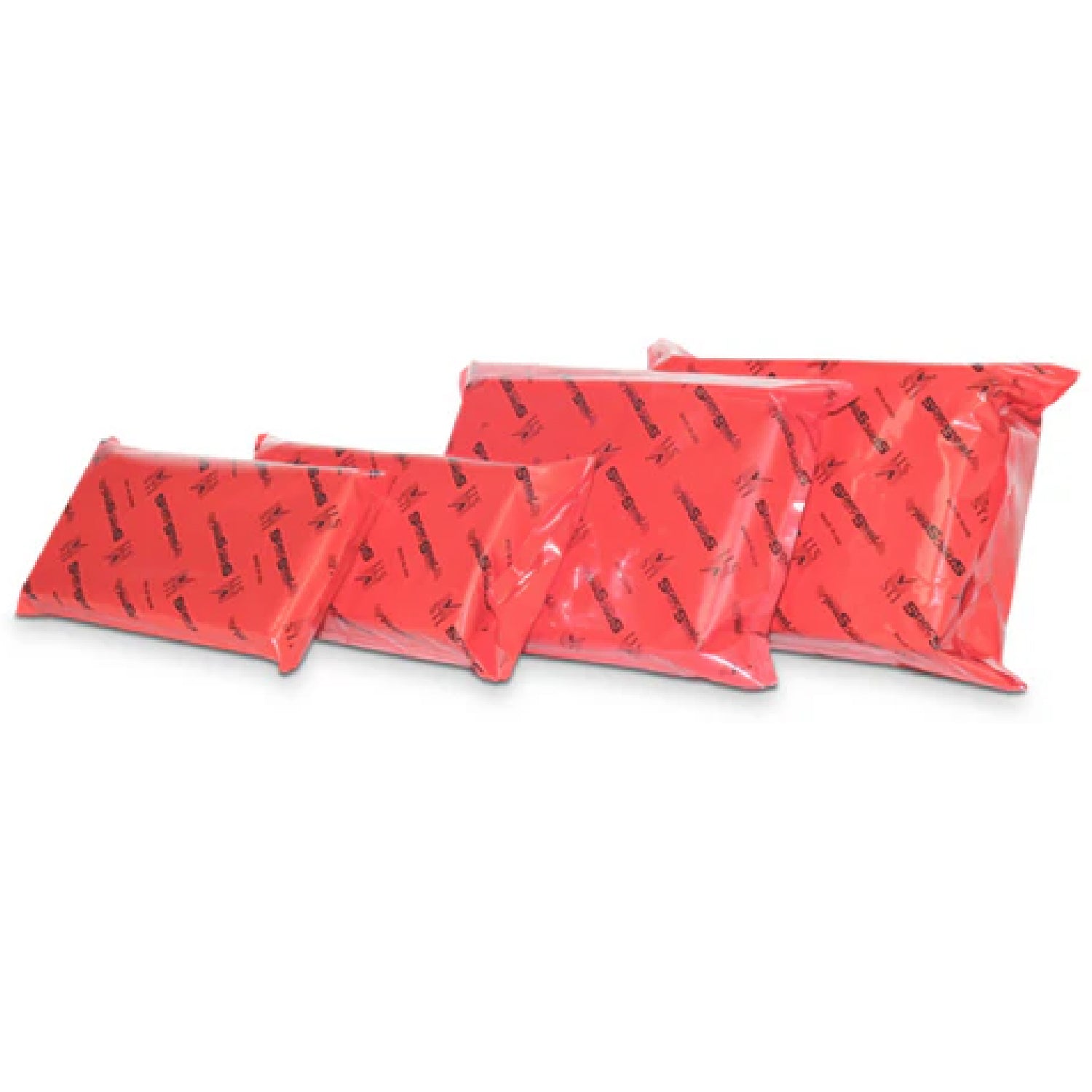

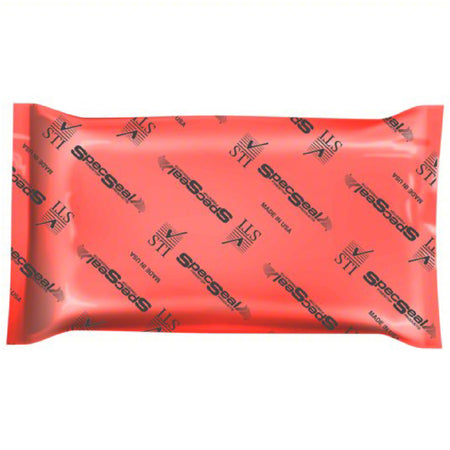

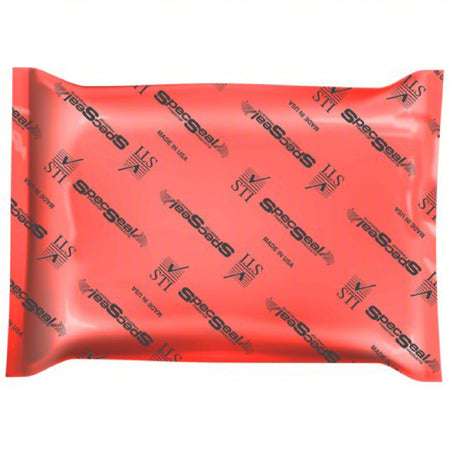

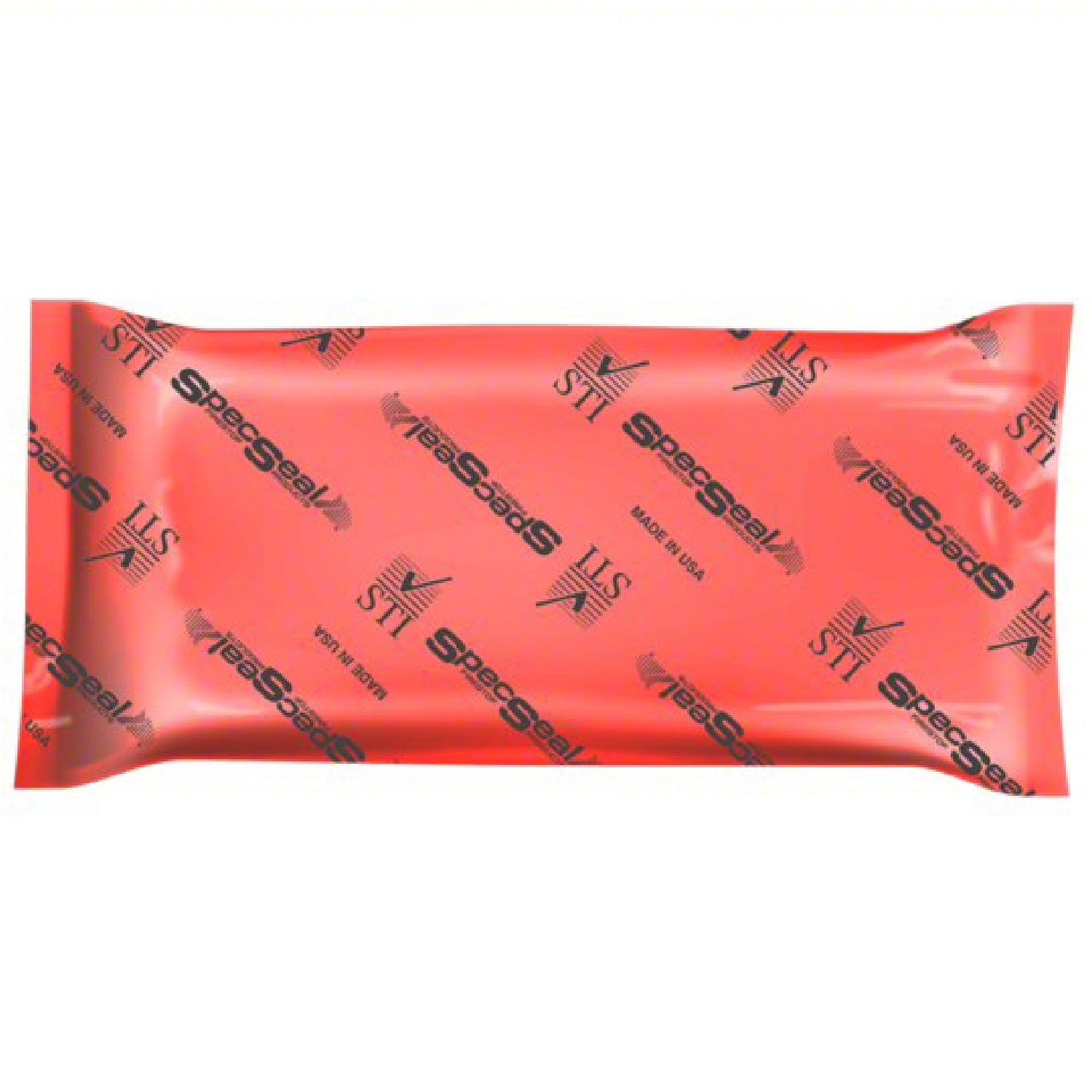

STI-SSB - STI Firestop Intumescent Pillow

Certifications

• UL Certified
• FM Approved

Description

SSB Firestop Pillows made to compress easily and mold to any opening. It can be used in new and existing construction and make short work of the most complex through penetration Firestop conditions.

Property	Value
Color	Red
Density	4 pcf (64 kg/m³)
Flammability	V-0**
Compression	25% to 33%****
Air Leakage	Less than 1 CFM/sq. ft.
In Service Temperature	Less than 130°F (54°C)
Storage Temperature	Less than 130°F (54°C)
STC Rating (ASTM E 90-40)	60 (Relates to specific construction)
L Rating (UL1479 and CAN/ULC-S115)	Less than 1 CFM/sq. ft. (Pillows Only)
VOC Content	0.00 lbs./gal (0.0 g/L)******
Shelf Life	No Limit

*Outer poly bag

**As installed

***Per SCAQMD Rule 1168 (EPA Method 24)

Features & Benefits

• Tested in a wide range of construction types and configurations
• Easily installs from a single side
• Re-enterable allowing for future work in previously sealed openings
