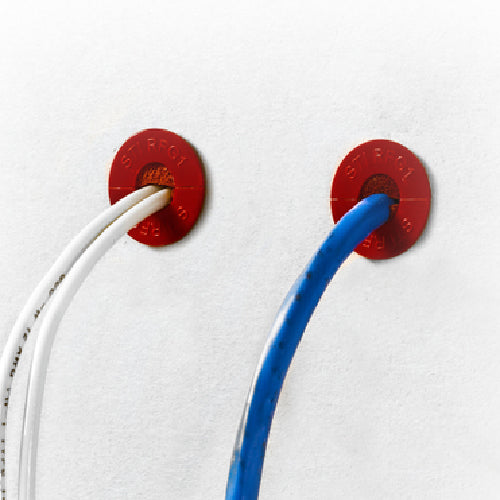

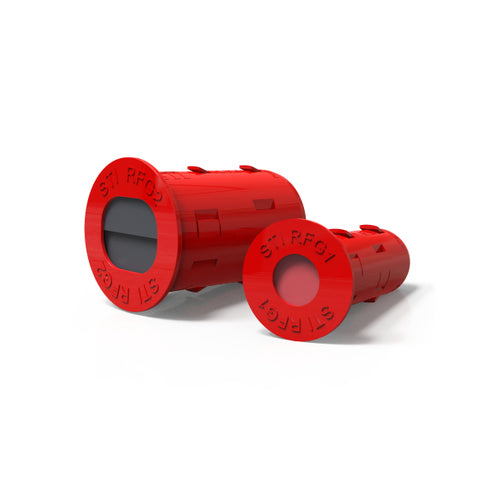

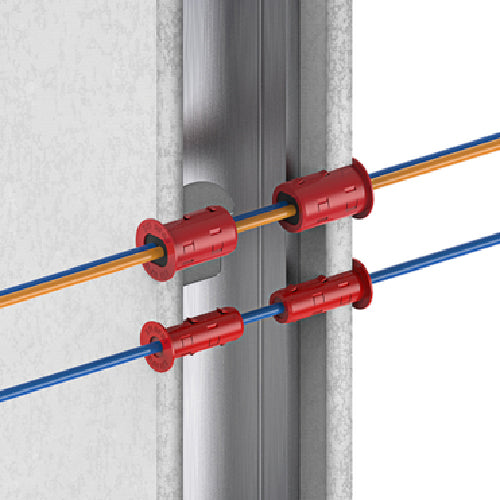

The STI ready Firestop grommet is designed to protect cables that are low voltage from smoke and fire. They are easy to install and don't leave messy substances behind.
| Manual |
| Installation Sheet |
| Product Data Sheet |
|
Property
|
Value
|
|---|---|
| Color | Red |
| Plenum Grade | Yes |
| Leakage Rating | Less than 1 CFM (ANSI/UL1479) |
| In Service Temperature | Less than 130°F (54°C) |
| VOC content | N/A |
| Shelf Life | No Limit |
| Overall Length | 1 5⁄8" (41.3 mm) |
| Installed Depth (from wall surface) | 1 9⁄16" (39.7 mm) |
| Required Opening for RFG1 | 9⁄16" (14 mm) |
| Weight for RFG1 | 0.01 lbs (5 g) |
| Required Opening for RFG2 | 1" (25 mm) |
| Weight for RFG2 | 0.03 lbs (14 g) |
