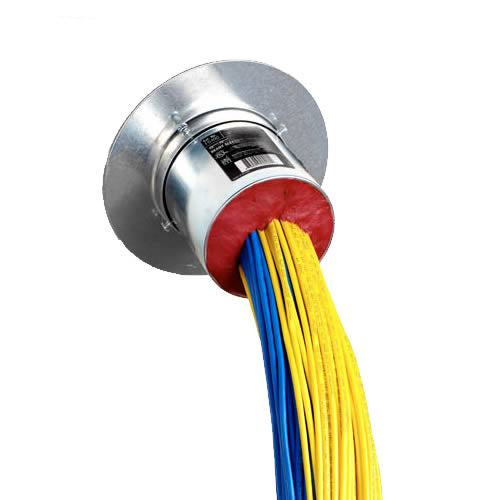

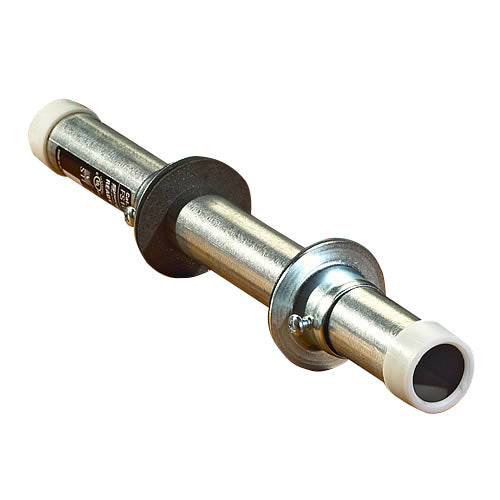

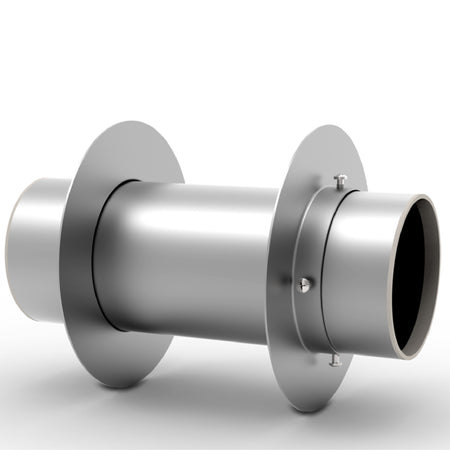

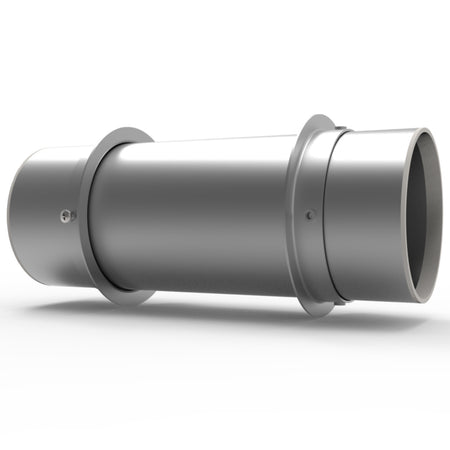

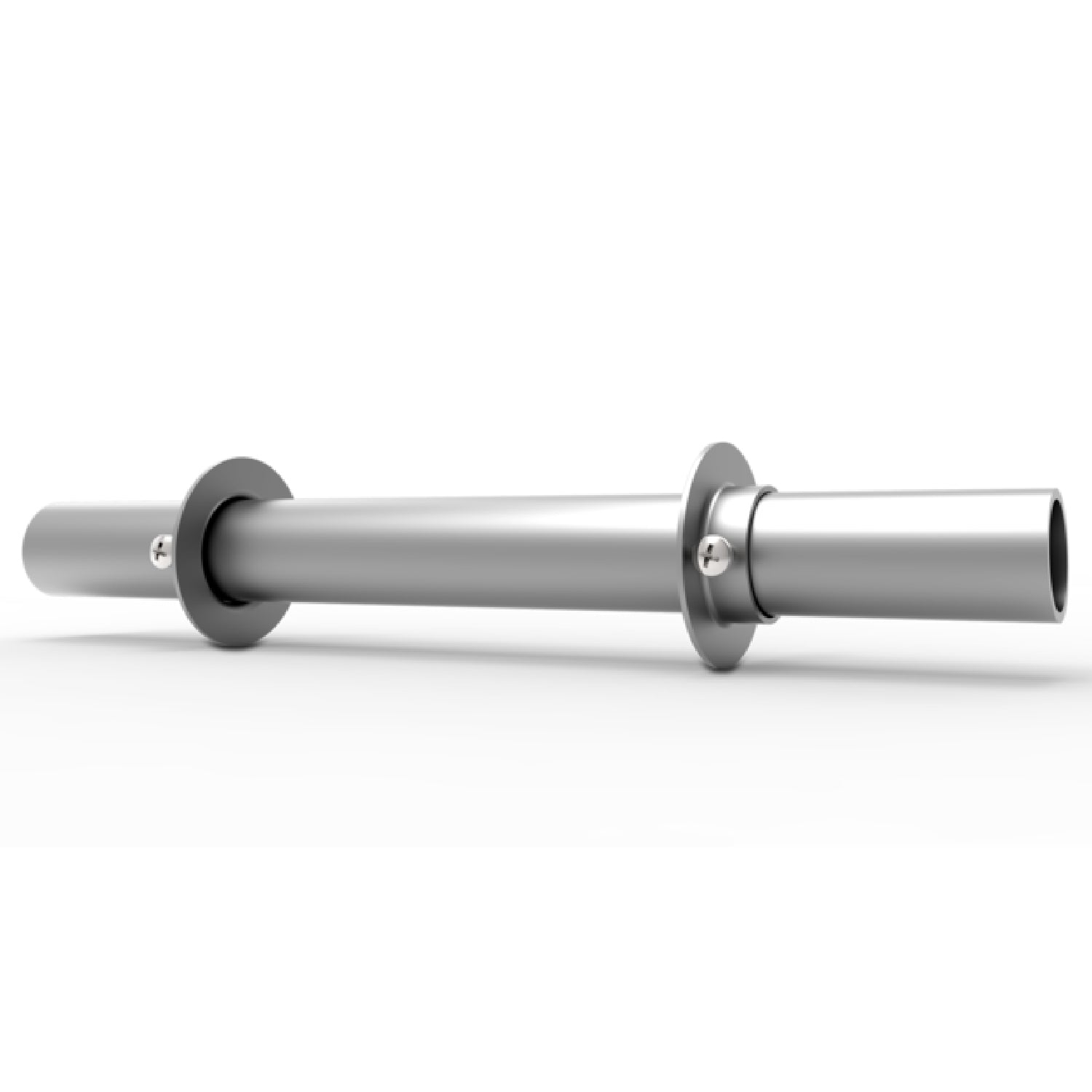

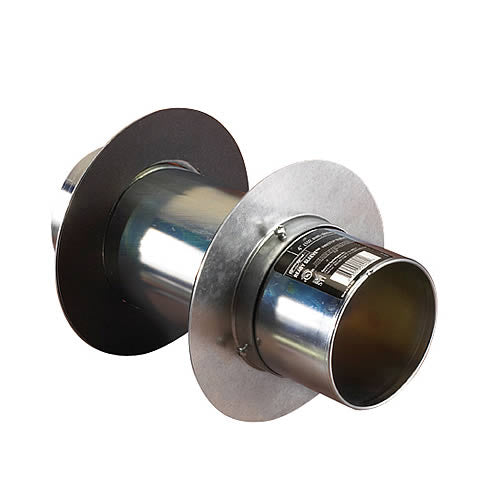

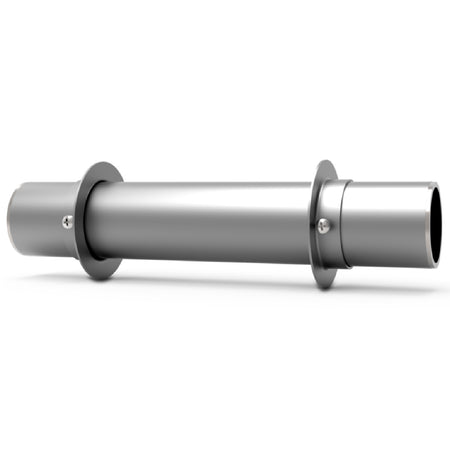

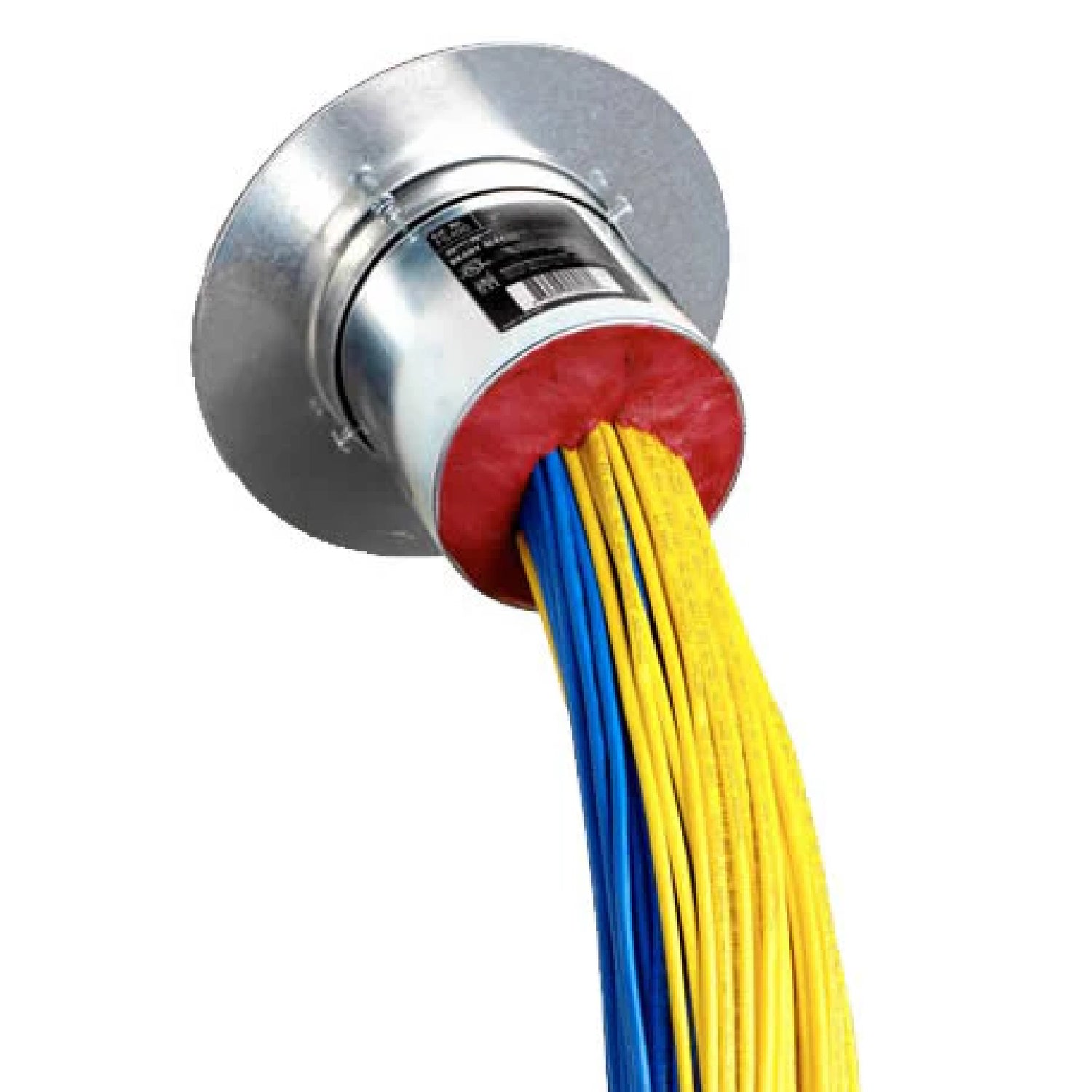

The STI Ready® Sleeve Kits are designed to protect against smoke and fire within the gypsum board, block walls, concrete floors, and walls. Individuals can choose the size needed between 1", 2", and 4" in diameter.
|
Property
|
Value
|
|---|---|
| Available Sizes | 1" (25 mm), 2" (51 mm), and 4" (102 mm) |
| Sleeve and Plate Construction | 0.059" (1.5 mm) thick steel (zinc plated) |
| Intumescent Gasket Expansion Temperature | 350°F (177°C) |
| Intumescent Gasket Volume Expansion | 15x (free expansion) |
| Intumescent Gasket In Service Temperature | -10°F (-23°C) to 120°F (49°C) |
| Intumescent Gasket Storage Temperature | Less than 120°F (49°C) |
| Putty Fill Material Color | Red |
| Putty Fill Material Odor | None |
| Putty Fill Material Solids | 100% |
| Putty Fill Material Volume Expansion | 8x (free expansion) |
| Putty Fill Material In Service Temperature | -10°F (-23°C) to 120°F (49°C) |
| Putty Fill Material Storage Temperature | Less than 120°F (49°C) |
| Putty Fill Material Expansion Temperature | 230°F (110°C) |
| Putty Fill Material VOC Content | 0.00 lbs./gal (0.0 g/L) |
| Putty Fill Material Shelf Life | No Limit |
