STI SpecSeal® Firestop Composite Sheets – Fire-Rated Barrier Panel System

Specified Technologies, Inc.
$223.80

Secure checkout

Friendly support

Hassle-free returns

Need Specifications / Data Sheets?

Product Resources, All in One Place

Composite sheets are commonly used for firestopping large openings where a clean, neat finish is required. These sheets provide a consistent exterior surface, supporting both appearance and performance in firestop applications.

They can be used in combination with other STI Firestop products to seal penetrations in fire-resistance rated walls and floors. Suitable for metallic and non-metallic pipes, insulated pipes, cable trays, cables, conduits, and blank openings, composite sheets support reliable sealing across a wide range of penetration types.
  • Panels are intumescent up to 15 times their original size for excellent firestopping of large or small openings.
  • Once activated, these sheets form a dense insulated char, which reduces the transfer of heat and smoke.
  • 50% lighter in weight and approximately 1/2 the thickness of standard composite sheet products for easy installation and handling.

Features

These products protect openings of any shape in common construction work against fire, smoke, and combustion by-products. Another benefit to this type of firestop is that no maintenance is needed as there might be with other choices; however, it is recommended that any new openings or jobs be inspected to ensure that all remained sealed.

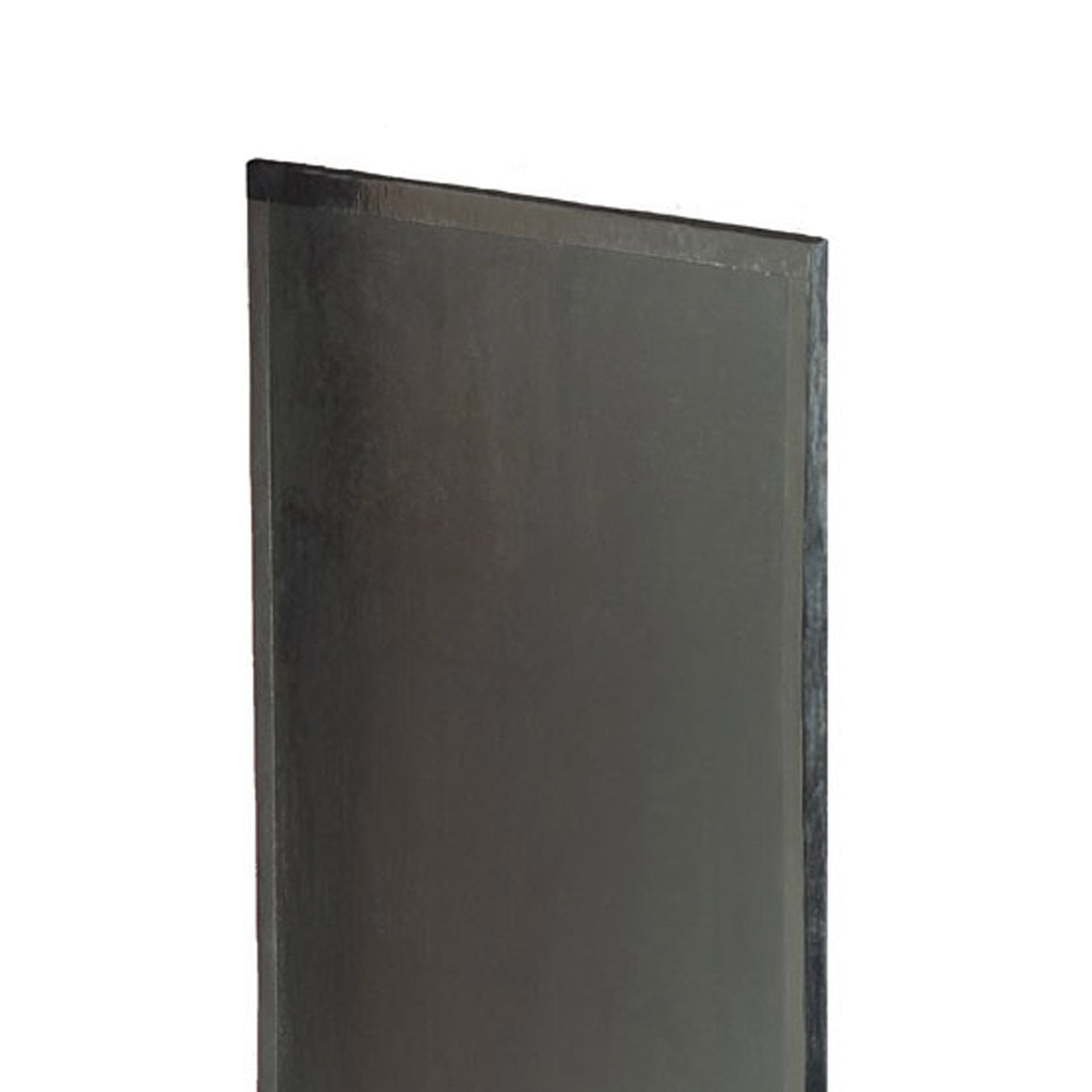

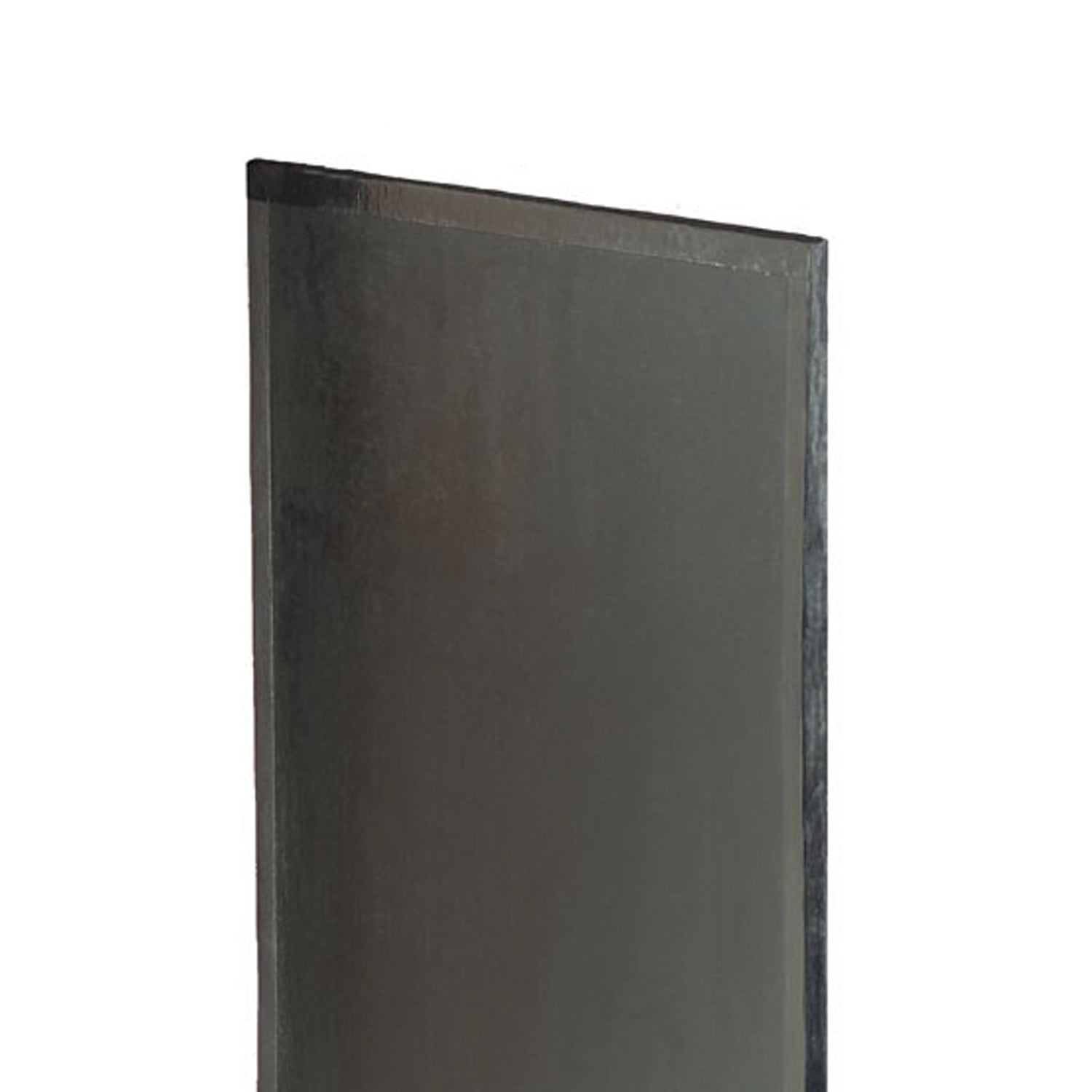

  • Durability built in: made of an intumescent layer bonded to a galvanized steel sheet, reinforced with steel wire mesh and covered with aluminum foil.
  • Easy to cut using standard sheet metal cutting tools to size your composite sheets to specs.
  • Can be used with other SpecSeal® or EZ Path products by STI
  • UL Classified
  • Tested to ASTM E814 (ANSI/UL 1479) for up to 2 hours
  • Specifically created for use in medium- to large-sized openings
  • Excellent for use in both floors and walls because it is lightweight enough for handing and hanging
  • Paintable for blending with current décor

Applications:

  • Seal penetrations through fire-rated walls and floors
  • Metallic and non-metallic pipes
  • Insulated pipes
  • Cable trays
  • Cables
  • Conduits
  • Blank openings
  • Suitable for clean room/area environment
