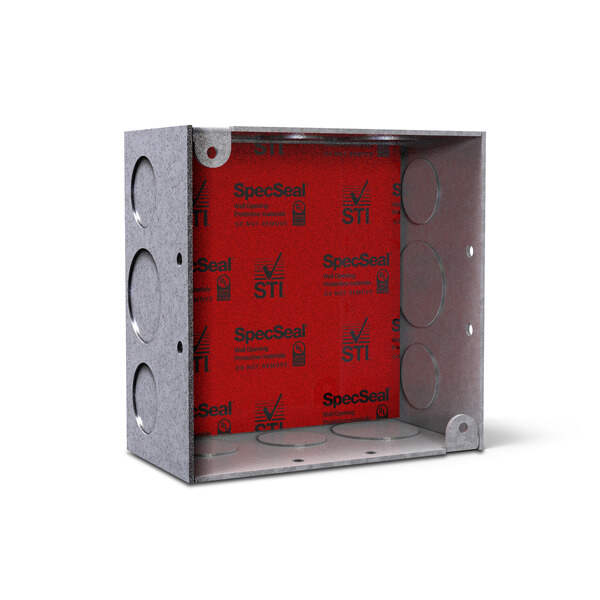

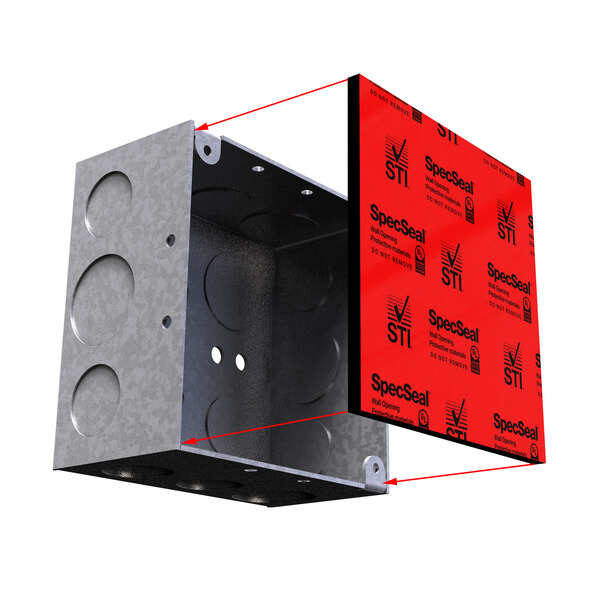

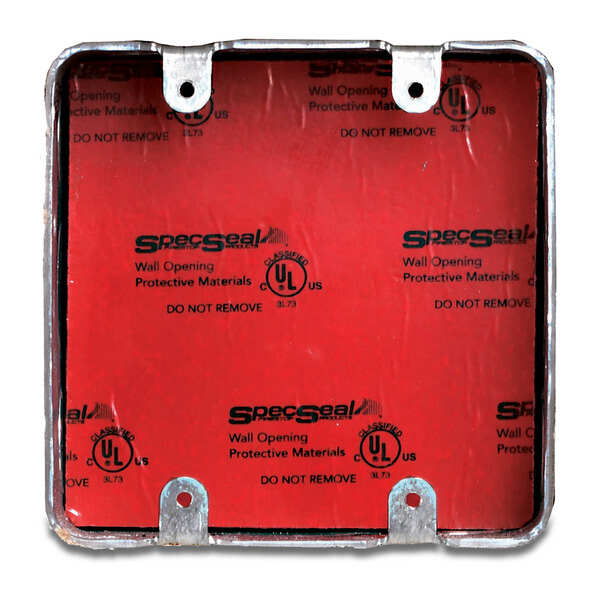

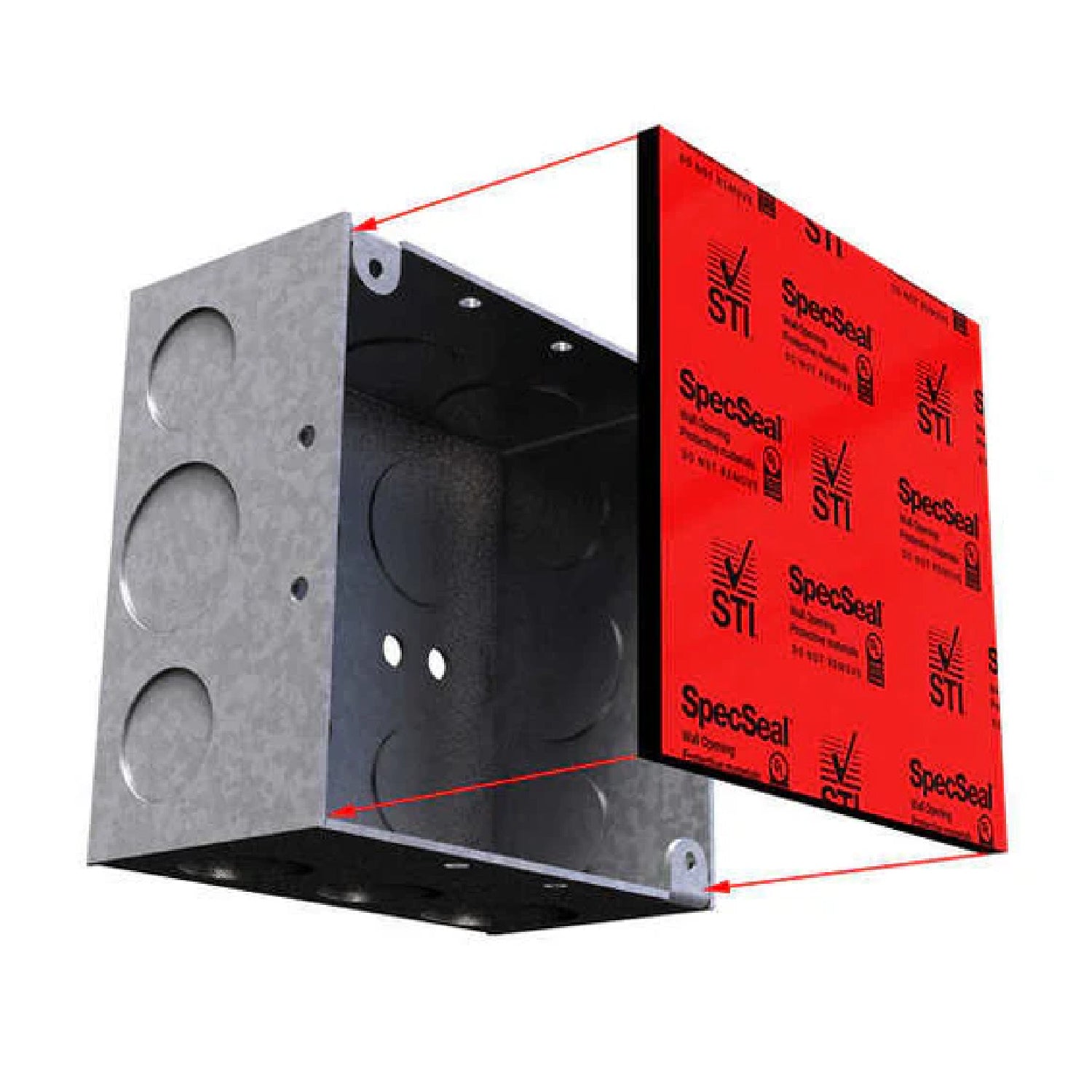

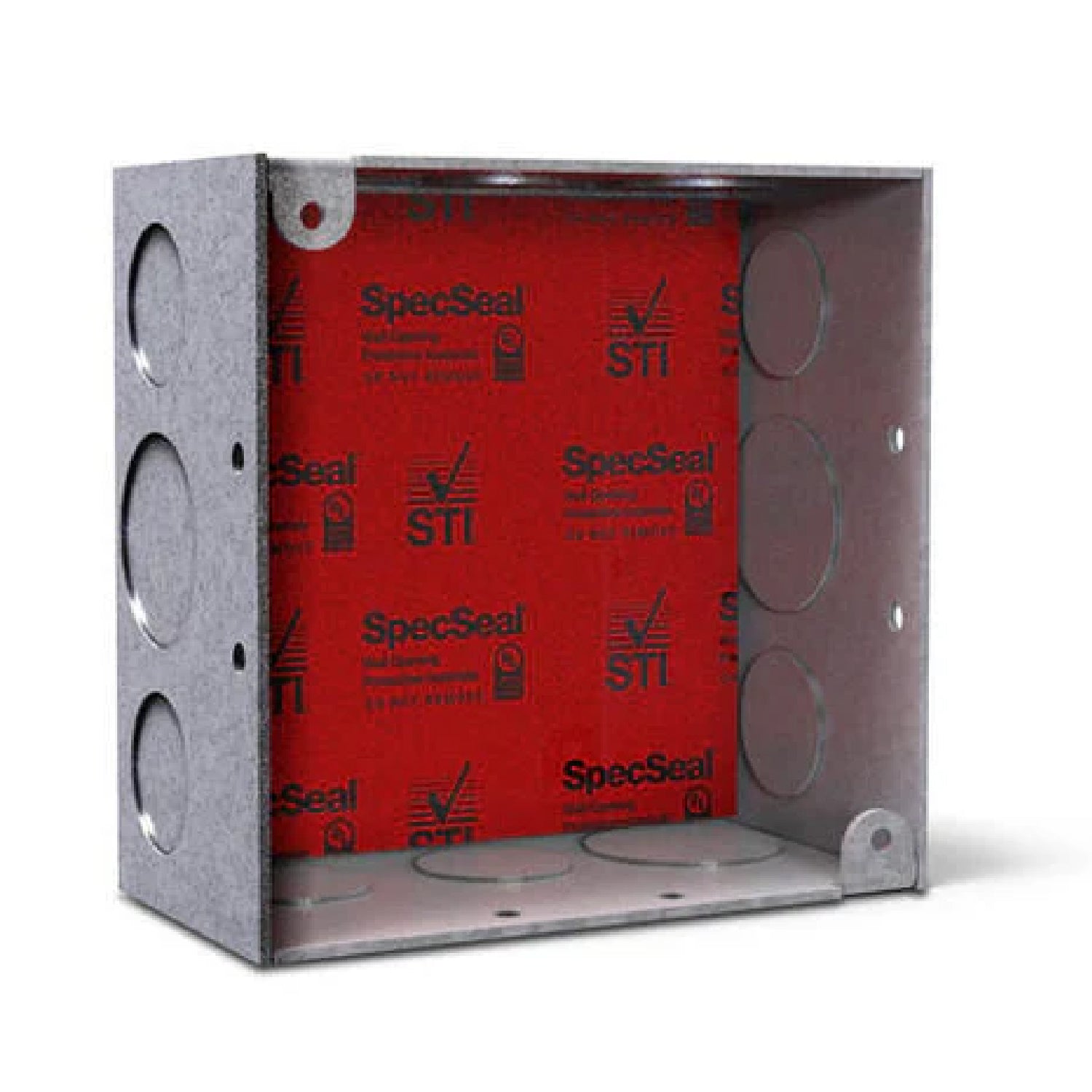

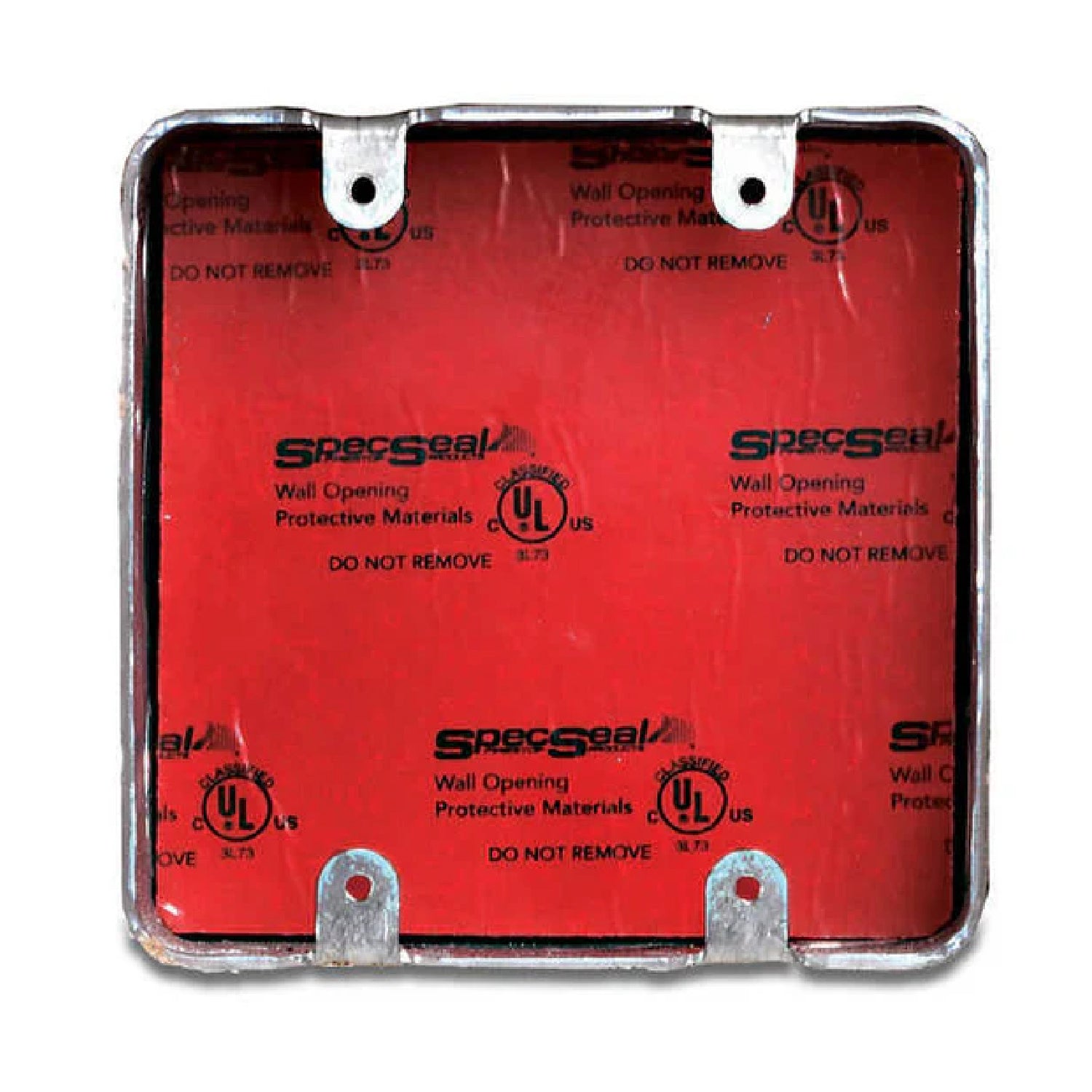

STI Series EP Power Shield Electrical Box Inserts install within steel electrical boxes directly agains the back of the box.
MANUALS & USER GUIDES -
-
Electrical Box Insert Pad - Material Safety Data Sheet (PDF)
-
Electrical Box Insert Pad - Product Data Sheet (PDF)
|
Property
|
Value
|
|---|---|
| Color | Red |
| Expansion Begins | 350°F (177°C) |
| Expansion Range | 350°F (177°C) to greater than 1,000°F (538°C) |
| Volume Expansion | 16x to 24x (free expansion) |
| In Service Temperature | Less than 130°F (54°C) |
| Storage Temperature | Less than 130°F (54°C) |
| Oven Aging | No Change (60°C)* |
| Humidity Exposure | No Change (60°C, 98% R.H.)* |
| STC Rating (ASTM E 90-04) | 64 (Relates to specific construction) |
| Shelf Life | No Limit |
