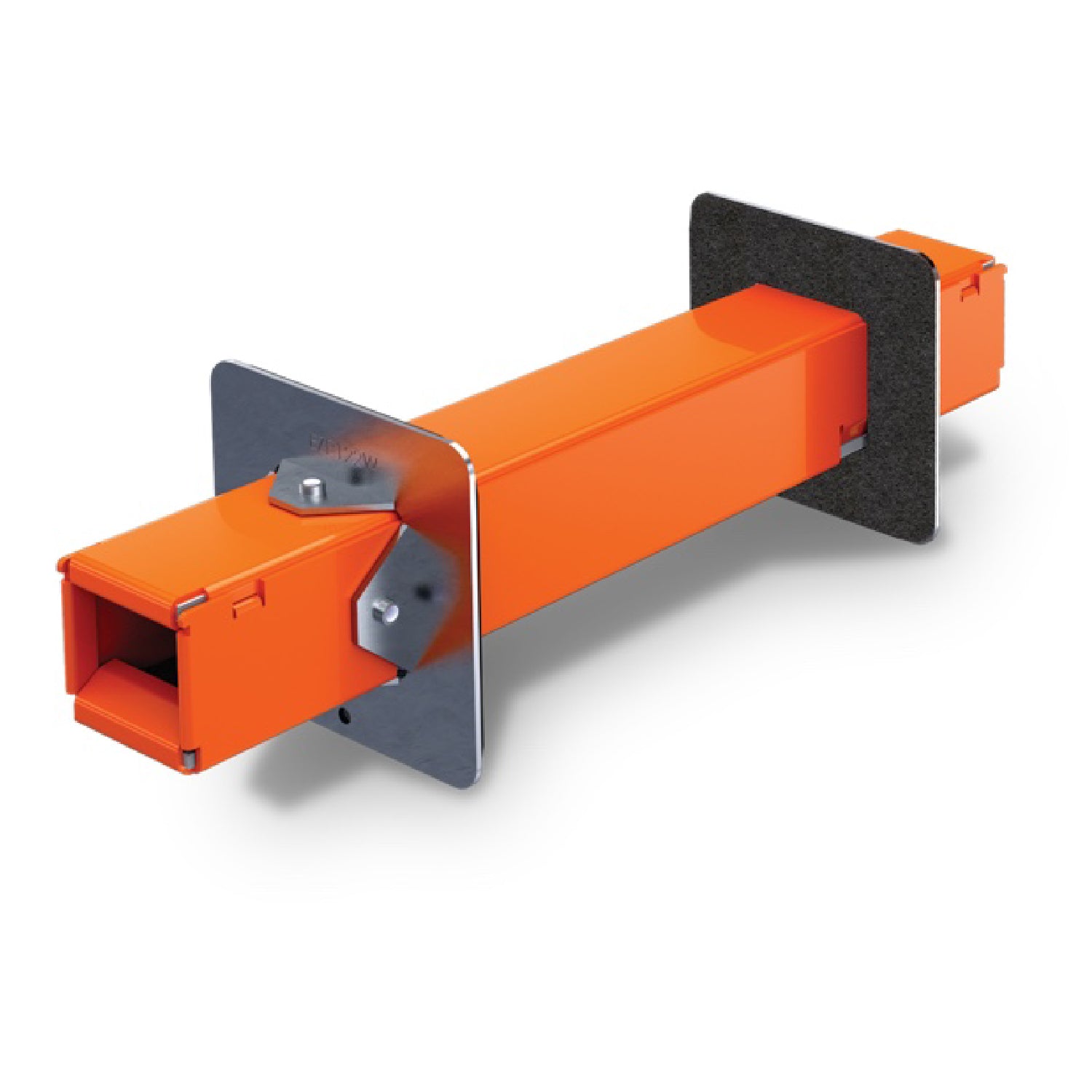

STI-EZD - Specified Technologies EZ Path - Fire Rated Cable Pathway Device Kit
Regular price
$134.54
Secure checkout
Friendly support
Hassle-free returns
Need Specifications / Data Sheets?
This cable pathway kit is designed to prevent fire from passing through fire-rated walls. It accommodates multiple cables and seals the penetration when exposed to fire.
| Property | EZD22 | EZD33 | EZD44 |
|---|---|---|---|
| Shell Composition | 0.059" Galvanized Steel (1.5 mm) | 0.059" Galvanized Steel (1.5 mm) | 0.059" Galvanized Steel (1.5 mm) |
| Cable Loading Area | 1 1⁄4 sq. in (nom.) (8.06 sq. cm) | 6 sq. in (nom.) (39 sq. cm) | 12.66 sq. in (81.7 sq. cm) — 3 3⁄8" x 3 3⁄4" (86 mm x 95 mm) |
| Allowable Cable Fill | 0% to 100% (visual) | 0% to 100% (visual) | 0% to 100% (visual) |
| Fire Resistance Ratings | 1, 2, 3 and 4 Hour | 1, 2, 3 and 4 Hour | 1, 2, 3 and 4 Hour |
| Expansion Begins | 350°F (177°C) | 350°F (177°C) | 350°F (177°C) |
| Volume Expansion | 30× | 15× | 15× |
| Sample Cable Volume | Cat 6 (0.236" OD) — 15 (nom.) | Cat 6 (0.236" OD) — 15 (nom.) | (0.236" OD) — 210 (nom.) |
| In Service Temperature | -10°F (-23°C) to 120°F (49°C) | -10°F (-23°C) to 120°F (49°C) | -10°F (-23°C) to 120°F (49°C) |
| Storage Temperature | < 120°F (49°C) | < 120°F (49°C) | < 120°F (49°C) |
| Shelf Life | No Limit | No Limit | No Limit |
