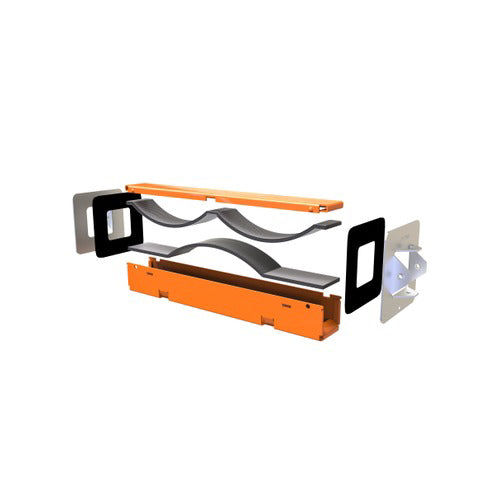

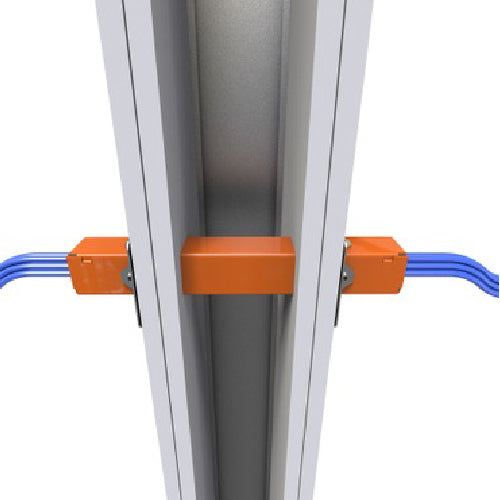

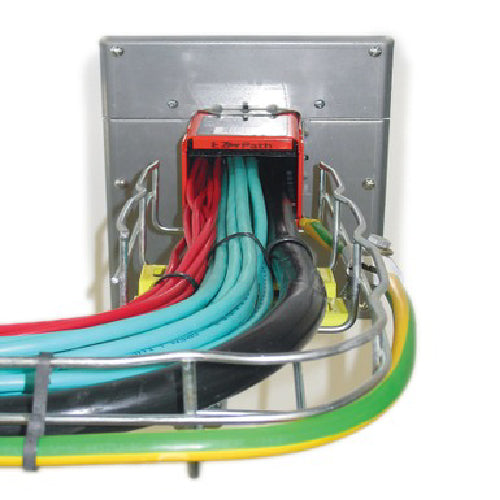

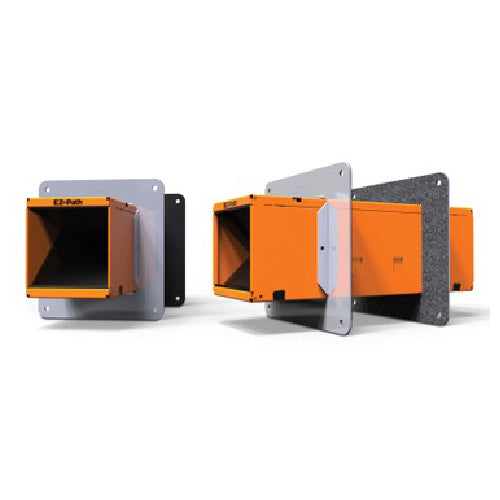

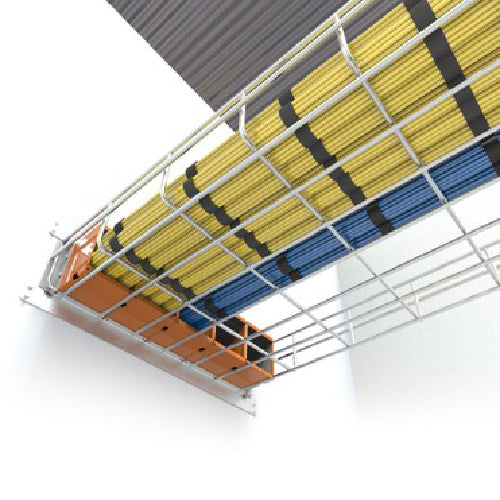

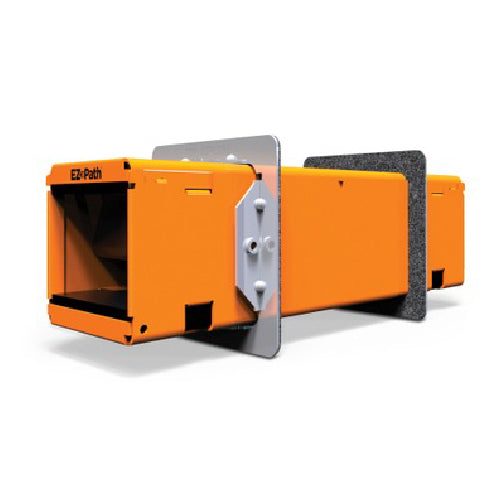

This cable pathway kit is designed to stop a fire from passing through fire rated walls. This kit accommodates cables that run through it at any number of times. It seals the location off when exposed to fire.
| MANUALS & USER GUIDES |
|
Installation Manual - Series 22 (PDF) EZ Path Series 22 - Data Sheet (PDF) Installation Manual - Series 33 (PDF) EZ Path Series 33 - Data Sheet (PDF) |
|
Property
|
EZD22
|
EZD33
|
EZD44
|
|---|---|---|---|
| Shell Composition | 0.059" Galvanized Steel (1.5 mm) | 0.059" Galvanized Steel (1.5 mm) | 0.059" Galvanized Steel (1.5 mm) |
| Cable Loading Area | 1 1⁄4 sq. in (nom.) (8.06 sq. cm) | 6 sq. in (nom.) - 39 sq. cm | 12.66 sq. in (81.7 sq. cm) 3 3⁄8" x 3 3⁄4" (86 mm x 95 mm) |
| Allowable Cable Fill | 0% to 100% Visual | 0% to 100% Visual | 0% to 100% Visual |
| Fire Resistance Ratings | 1, 2, 3 and 4 Hour | 1, 2, 3 and 4 Hour | 1, 2, 3 and 4 Hour |
| Expansion Begins | 350°F (177°C) | 350°F (177°C) | 350°F (177°C) |
| Volume Expansion | 30x | 15x | 15x |
| Sample Cable Volume | Cat 6 (0.236" OD) 15 (nom.) | Cat 6 (0.236" OD) 15 (nom.) | (0.236" OD) 210 (nom.) |
| In Service Temperature | -10°F (-23°C) - 120°F (49°C) | -10°F (-23°C) - 120°F (49°C) | -10°F (-23°C) - 120°F (49°C) |
| Storage Temperature | Less than 120°F (49°C) | Less than 120°F (49°C) | Less than 120°F (49°C) |
| Shelf Life | No Limit | No Limit | No Limit |
