SKU: F9T0.13TB-10

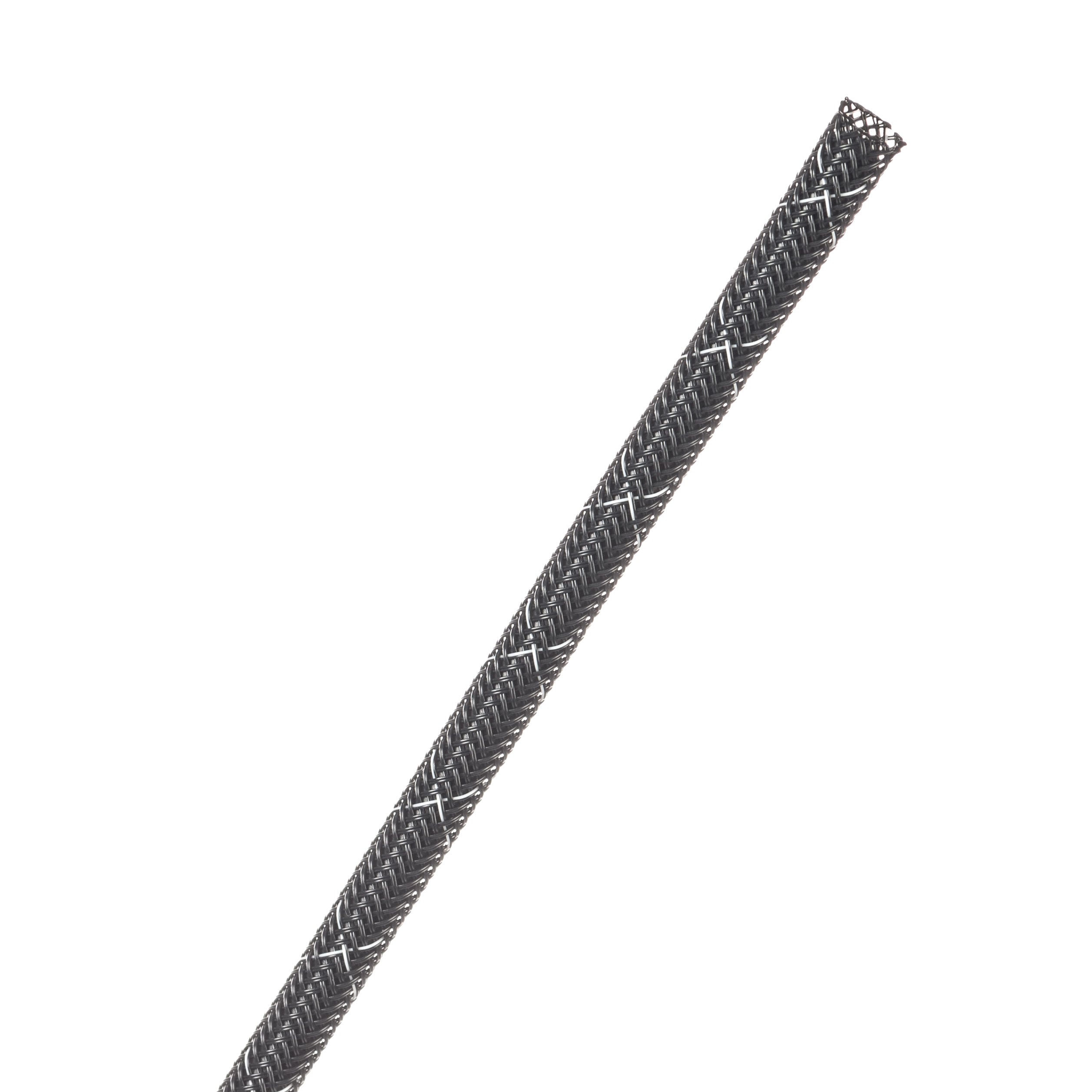

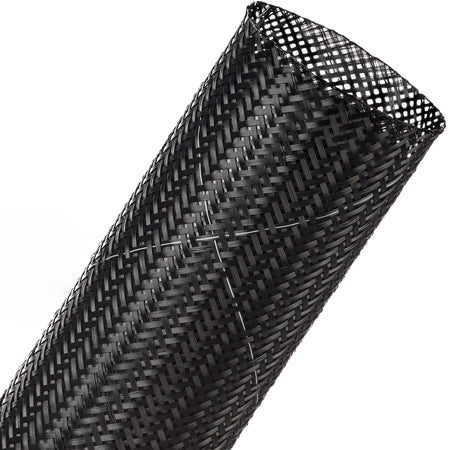

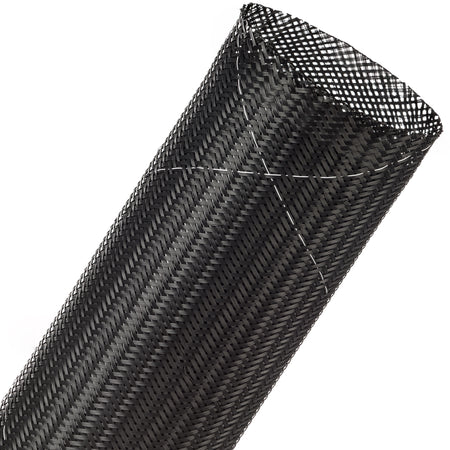

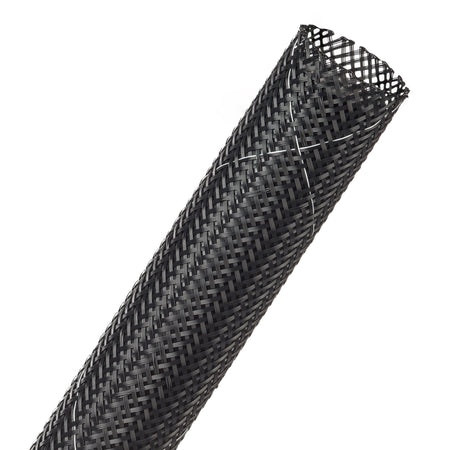

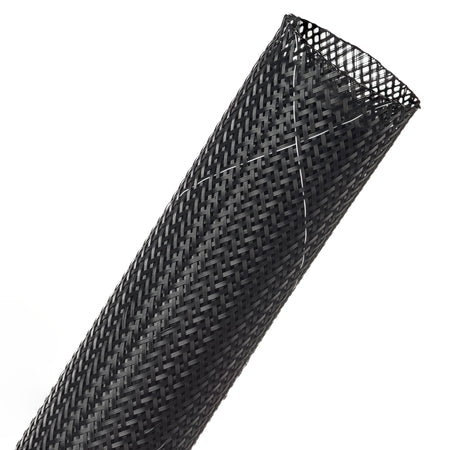

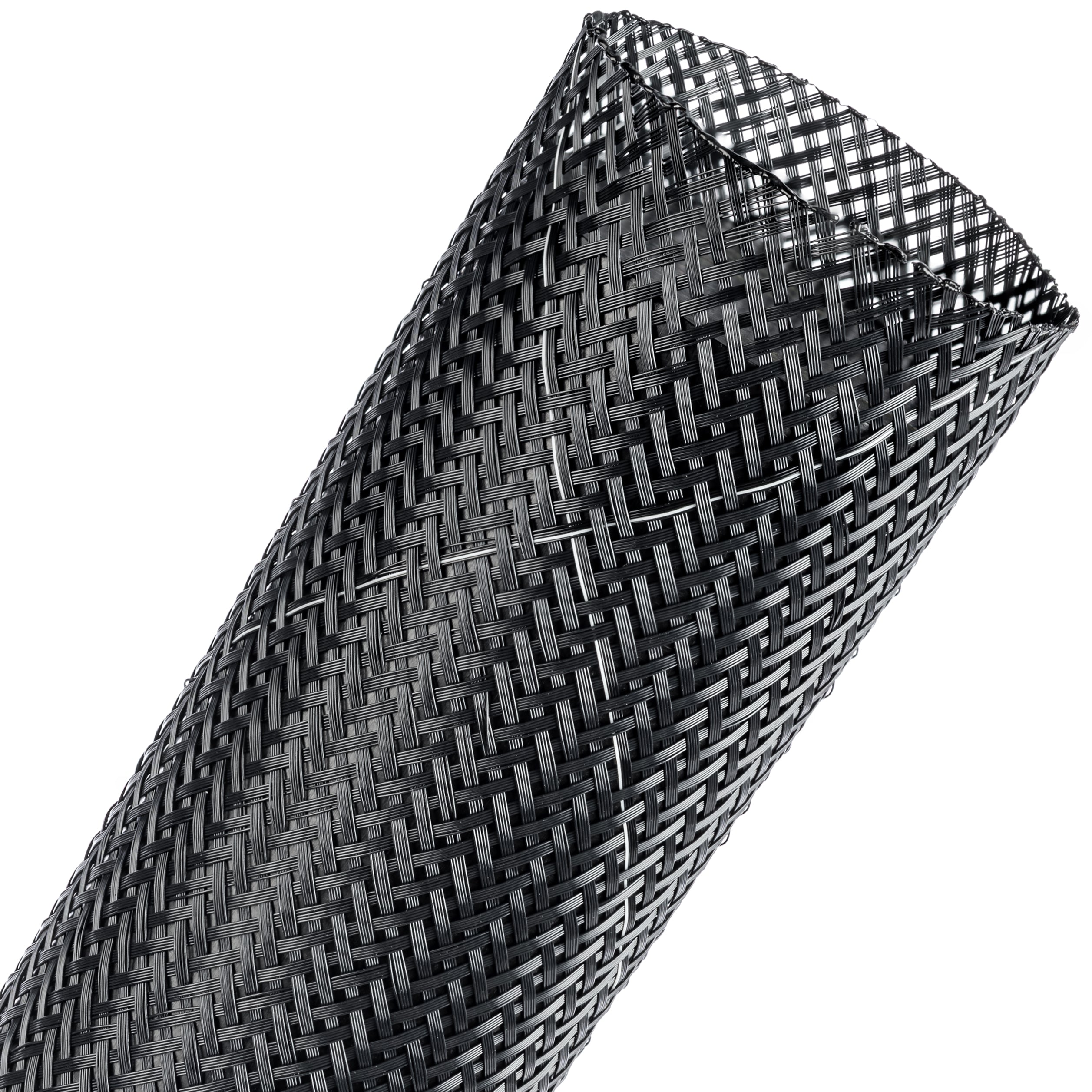

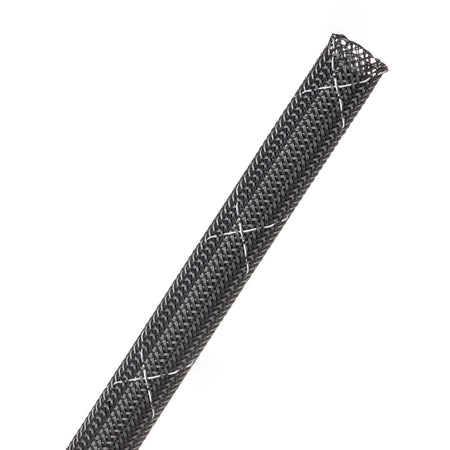

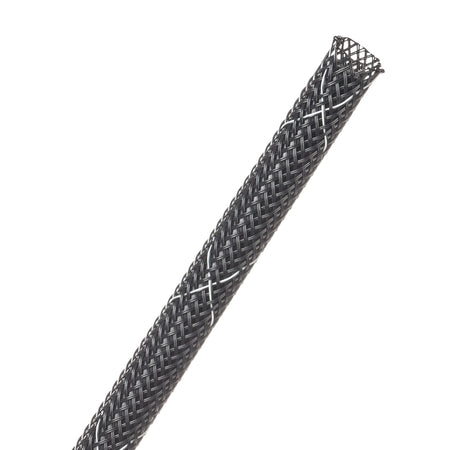

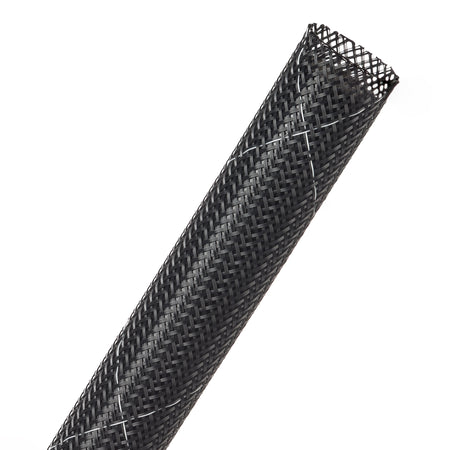

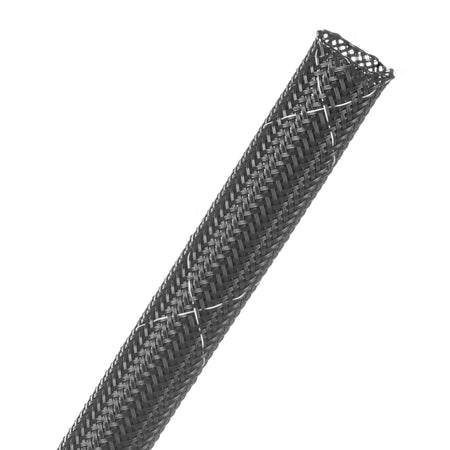

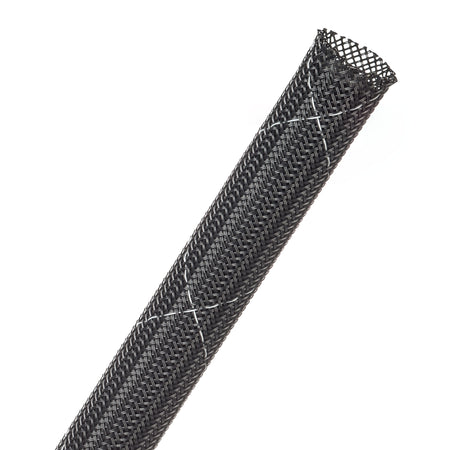

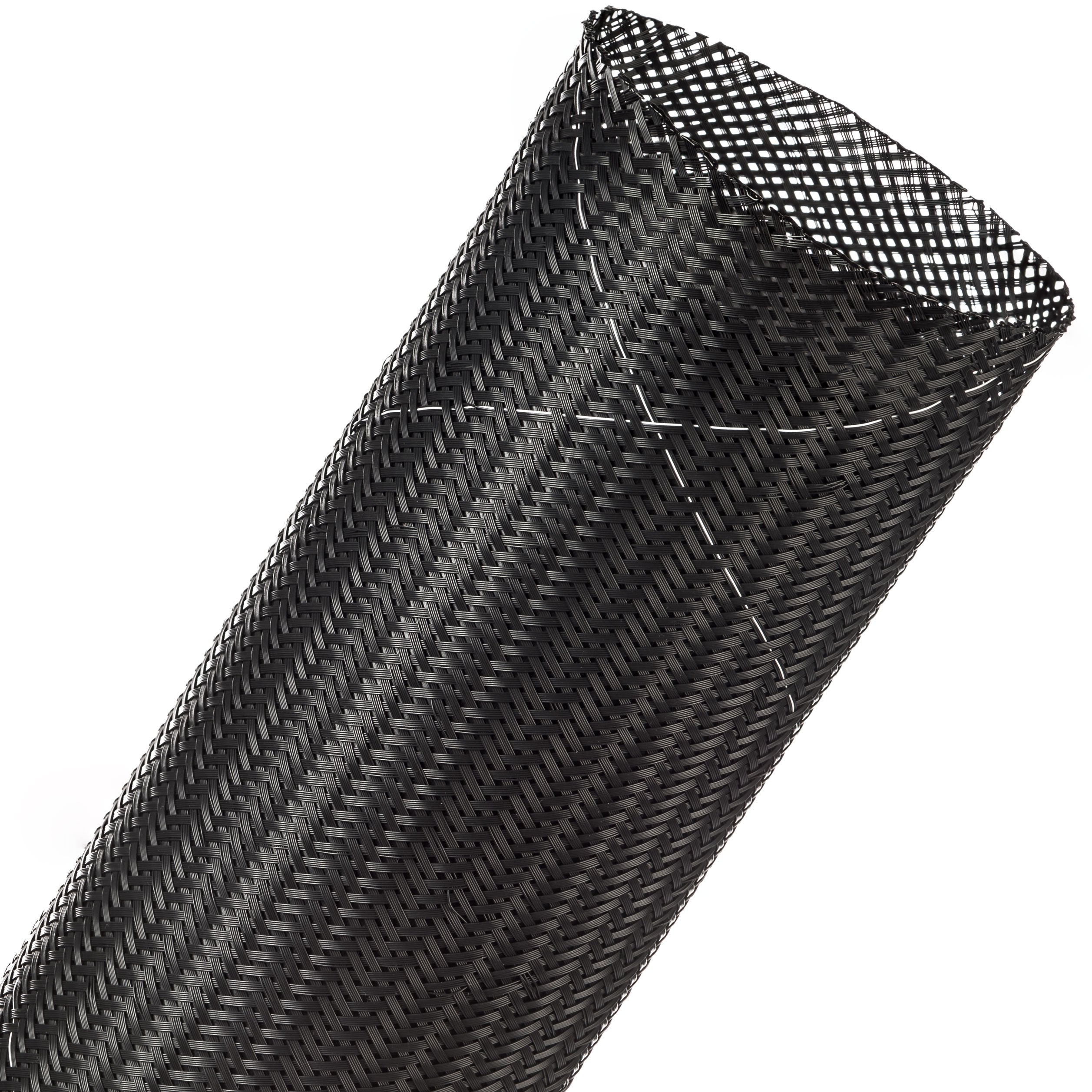

Flexo® Tight Weave™ Flame Retardant

Techflex
$4.50

Secure checkout

Friendly support

Hassle-free returns

Need Specifications / Data Sheets?

Product Resources, All in One Place

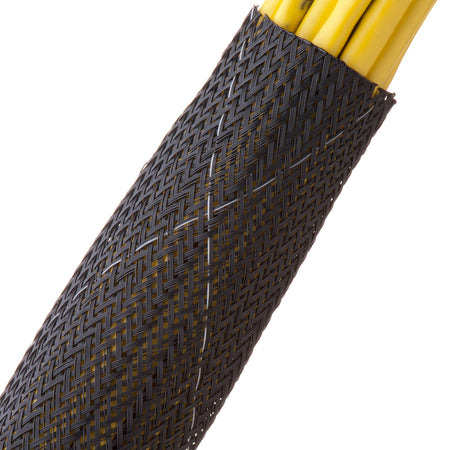

When both flame resistance and easy accessibility are priorities, Flame Retardant Flexo® Tight Weave™ provides the perfect balance. Originally developed with aircraft manufacturers as an upgrade to Standard Grade FR, this sleeving is made from tightly braided 9 mil flame-retardant monofilament for superior coverage of wire harnesses. The dense braid enhances abrasion resistance—a key factor in aviation applications—while the use of 9 mil monofilament (rather than 10 mil) minimizes added weight without compromising protection.
  • Resists Gasoline And Engine Chemicals
  • Meets Material Specs For Major Airlines
  • Halogen Free - RoHS Compliant
  • VW-1, Mil-202, FAR-25 Approved
  • Lighter Weight Than Standard Tight Weaves
  • Monofilament Diameter: 0.009 "
  • Flammability Rating: Far 25 VW-1
  • Recommended Cutting: Hot Knife
  • Colors: 2
  • Minimum Continuous Temp: -94 ºF / -70 ºC
  • Maximum Continuous Temp: 257 ºF / 125 ºC
  • Melt Temp: 482 ºF / 250 ºC

What Does ‘Flame Retardant’ Mean?

Flame retardant refers to a substance or material that is designed to resist or delay the ignition and spread of flames. Flame retardants work by interrupting the chemical reactions that occur when a material is exposed to heat or flames. They can prevent or slow down the release of flammable gases, reduce the amount of oxygen available for combustion, or create a protective layer that shields the material from the fire.

Flame Retardant Vs. Non-Flammable

Flame retardant: These materials are designed to resist flames and prevent or slow the spread of fire. These materials are treated with special chemicals that react to heat and flames, creating a barrier that can help protect against fire and reduce the risk of damage or injury.

Non-Flammable: These materials are those that do not burn or ignite at all, even when exposed to heat or flames. These materials may be made from special types of metals or other materials that have a very high melting point or are inherently resistant to fire.
