Flexo® F6® Woven Flame Retardant

Techflex
$12.40

Secure checkout

Friendly support

Hassle-free returns

Need Specifications / Data Sheets?

Product Resources, All in One Place

  • RoHS Compliant
  • RU

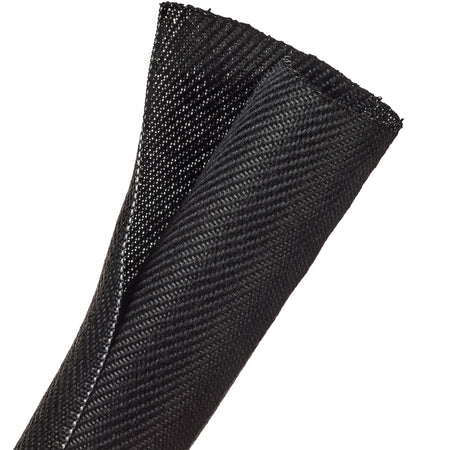

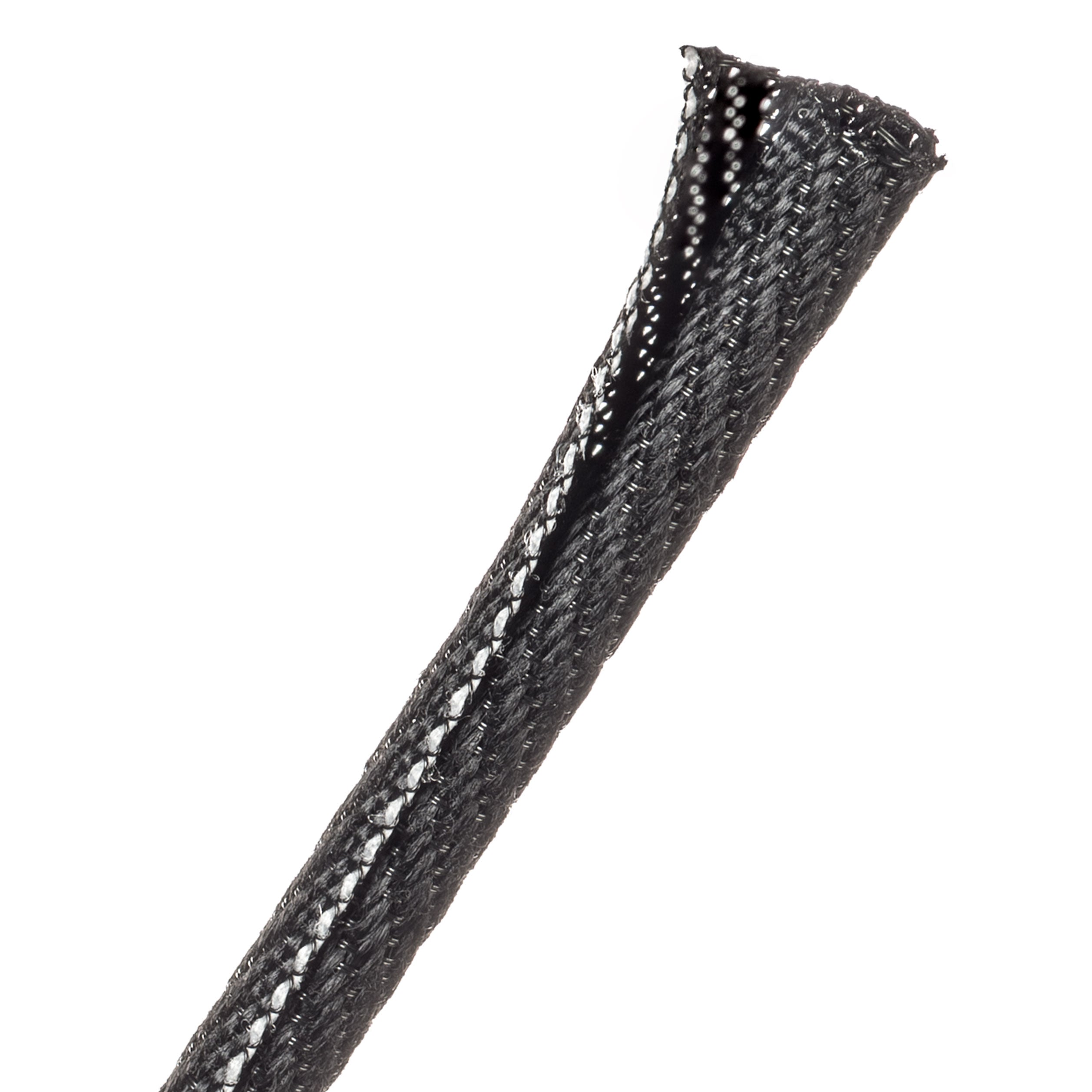

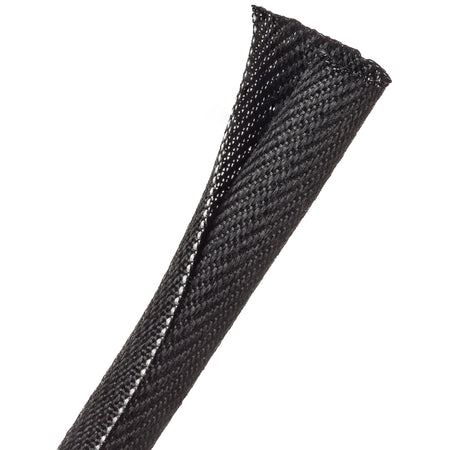

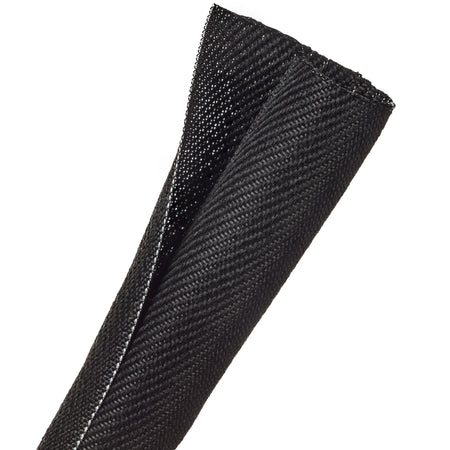

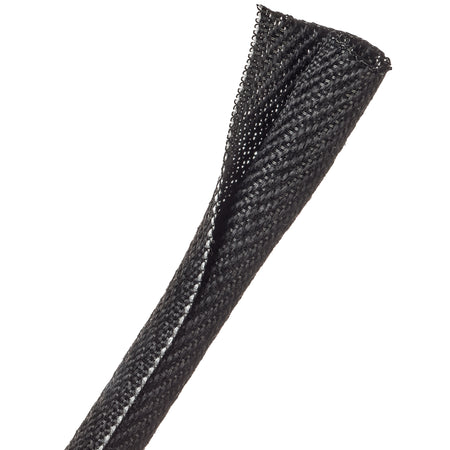

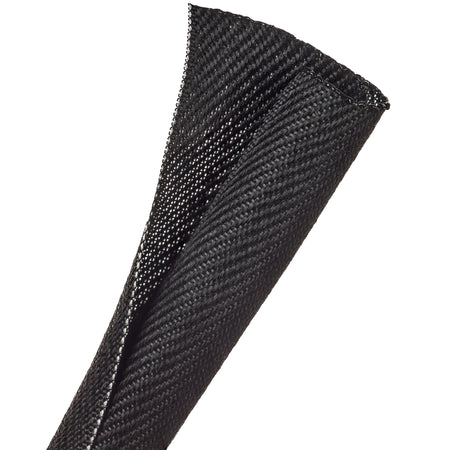

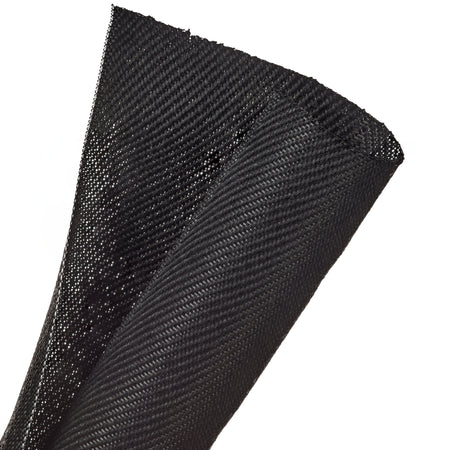

F6® Woven Wrap FR (F6V) is a VW-1 rated version of our industry-leading F6® Woven Wrap, enhanced with a flame inhibitor for added safety. It retains many of the same benefits as the original split braided sleeving, including the convenient wrap-around design and generous overlap for full protection of critical electronic, communication, and power systems. The advanced woven construction delivers exceptional flexibility and complete coverage over any harness assembly. Using a specialized process, monofilament and multifilament polyester fibers are blended to create a sleeving with built-in memory—allowing it to self-close securely and spring back into shape when opened.
  • Provides superior elastic flexibility with unbeatable coverage over any harness assembly.
  • Ideal for protecting components without disconnecting them.
  • Passes Smoke Density Test ASTM E-662
  • Passes Surface Flammability Test ASTM E-162
  • Passes Smoke Toxicity Test SMP 800-C
  • Monofilament Diameter: 0.010 "
  • Flammability Rating: VW-1
  • Recommended Cutting: Hot Knife
  • Colors: 1
  • Minimum Continuous Temp: -94 ºF / -70 ºC
  • Maximum Continuous Temp: 257 ºF / 125 ºC
  • Melt Temp

What Does ‘Flame Retardant’ Mean?

Flame retardant refers to a substance or material that is designed to resist or delay the ignition and spread of flames. Flame retardants work by interrupting the chemical reactions that occur when a material is exposed to heat or flames. They can prevent or slow down the release of flammable gases, reduce the amount of oxygen available for combustion, or create a protective layer that shields the material from the fire.

Flame Retardant Vs. Non-Flammable

Flame retardant: These materials are designed to resist flames and prevent or slow the spread of fire. These materials are treated with special chemicals that react to heat and flames, creating a barrier that can help protect against fire and reduce the risk of damage or injury.

Non-Flammable: These materials are those that do not burn or ignite at all, even when exposed to heat or flames. These materials may be made from special types of metals or other materials that have a very high melting point or are inherently resistant to fire.
